Key Specifications & Features
-

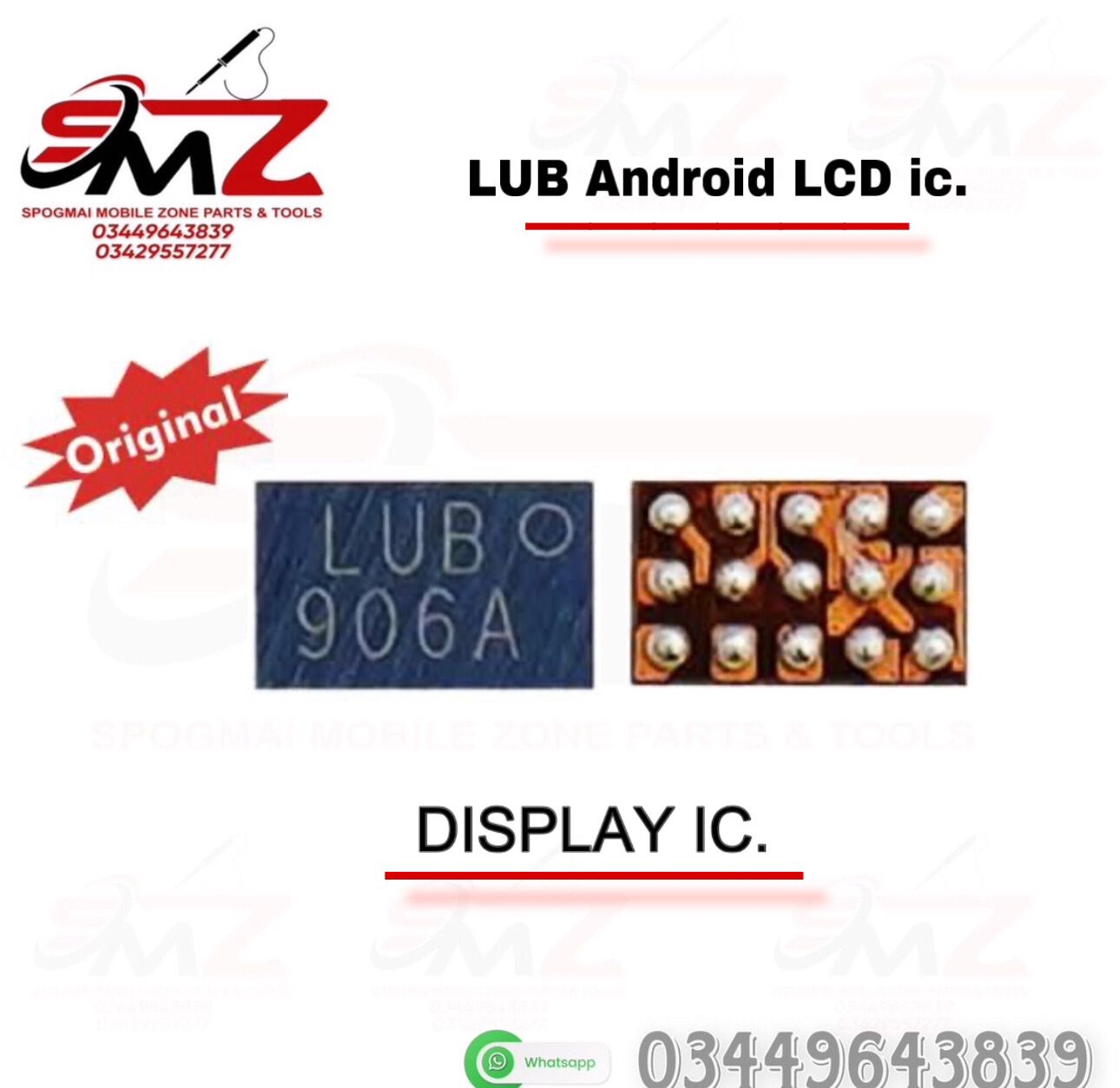

- Pin Configuration: It utilizes a compact 15-pin Ball Grid Array (BGA) layout underneath the chip.
- Functionality: Serves as a dual-purpose driver, handling both display graphics power supply and backlight control circuits.
- Common Variants: Often cross-referenced or interchangeable with chip markings like LUH, LUM, LUL, and OCP2131 driver series depending on the exact circuit design.
Device Compatibility
This universal chipset is heavily integrated into mobile repair frameworks for several prominent smartphone brands, including:
-
- Xiaomi / Redmi: Redmi Note 5, Redmi 5A, and Note 5A.
- Huawei / Honor: Huawei 9A and Honor 9A.
- OPPO: OPPO A8 and OPPO A9.
- Infinix & Tecno: Multiple models using universal Android display logic boards.
Common Symptoms of a Faulty LUB IC
When this specific chip degrades or suffers from improper soldering/water damage, the phone will typically experience:
-
- No Display / Black Screen: The phone powers on (vibrates or makes sounds) but the screen stays entirely black.
- Blue Screen Error: A continuous blue tint or solid blue screen layout upon booting up.
- No Backlight: The graphics are visible if you shine a flashlight directly at the screen, but the internal display light fails to activate.
- Motherboard Heating: Overheating centered right around the display/graphics section of the PCB panel.
