Key Technical Specifications
- Power Output: 80W Max.
- Heating Speed: 2-second lightning heat-up and 2-second thermal recovery.
- Temperature Range: 60°C to 480°C.
- Input Voltage: AC 100–240V wide voltage (global compatibility).
- Safety Ratings: Tip-to-ground voltage <2mV; resistance <2Ω to protect sensitive IC chips.
Core Structural Features

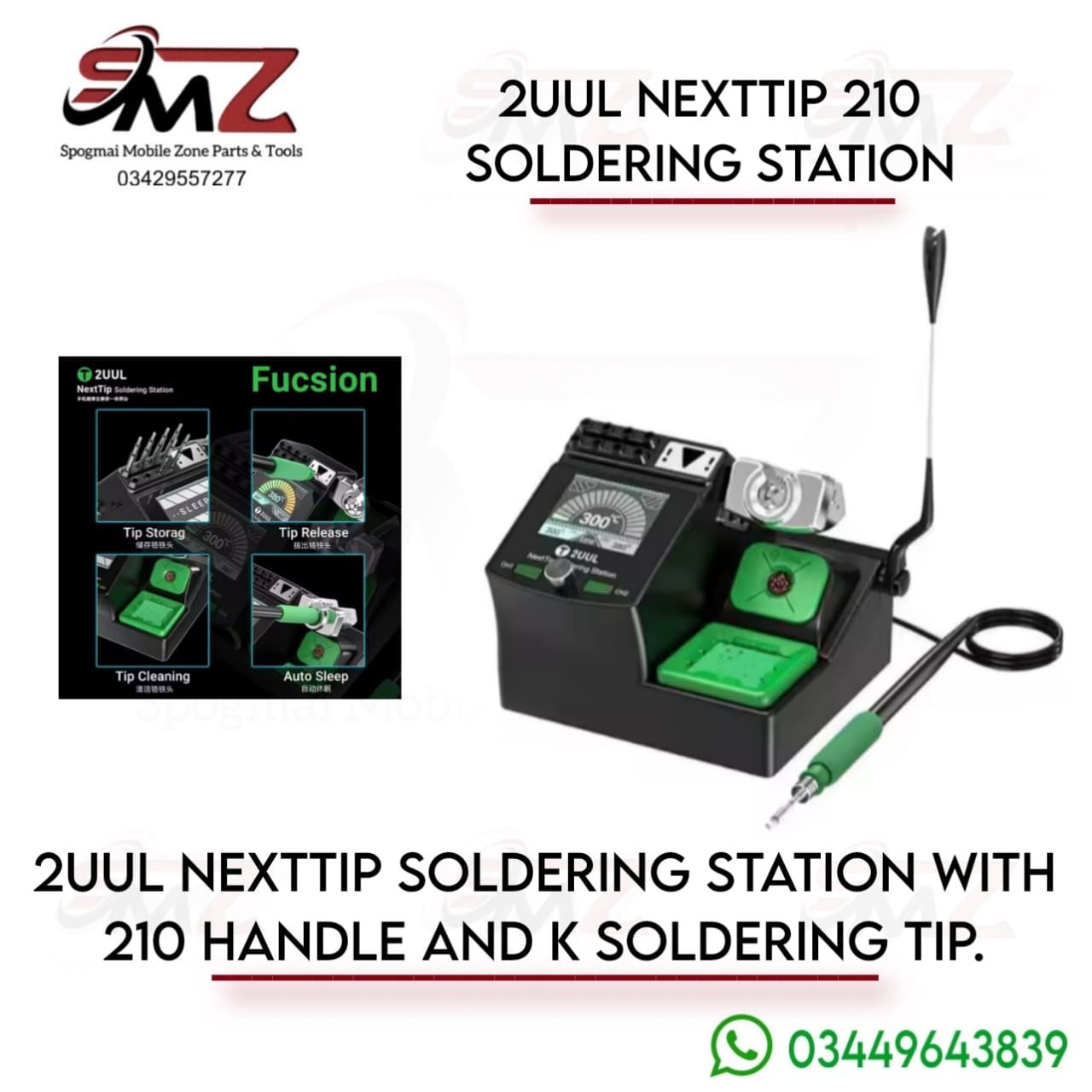

- High-Definition Interface: The front panel houses a large HD screen that displays real-time target temperature, active power output readings, and current operation modes.
- Smart Stand & Sleep Mode: Dropping the iron into the magnetic stand instantly triggers an automatic low-power sleep mode. This cuts power draw, curbs oxidation, and exponentially extends tip lifespans.
- Built-in Workspace Organizer: The chassis integrates a dedicated 6-slot storage array for hot exchange tips alongside an immediate cleaning station featuring both brass wool wire and a green cleaning sponge.
- Handle Optimization: Shipped standard with an ergonomic, detachable green handle built to minimize micro-tremors and hand fatigue during complex BGA reballing or trace rebuilding.
Typical Retail Configurations
Depending on where you order, the unit ships in a few different bundles:
- Standard Set: Includes the main NextTip power base, a T210 handle, and one C210 K-type (knife) tip.
- Full Kit: Can be purchased with additional C115 handles for ultra-fine jumper wire fixes, or larger C245 cartridges for high-thermal mass components like charging ports.
