Technical Specifications
As documented by SUGON’s Official Specifications and authorized distributors:
| Specification | Value / Details |
|---|---|
| Power Output | 1000W |
| Temperature Range | 100°C to 500°C (212°F to 932°F) |
| Airflow Volume | 1 to 120 Levels (Stepless Regulation) |
| Input Voltage | GB/EU: AC 220V (50Hz/60Hz) | US: AC 110V (50Hz/60Hz) |
| Fan Type | Brushless Vortex Fan (Turbine Blower) |
| Heating Element | Detachable 7B Fast Integrated Plug-in Heating Core |
| Display Type | Dual Independent LED Digital Screen (Temperature + Air Volume) |
| Dimensions | 188 mm × 245 mm × 135 mm |
| Net Weight | Unit: 2.7 kg / Full Package Weight: ~4.5 kg to 6 kg |
Key Hardware & Functional Features
-
- Preset Profiles: Includes 4 customizable memory storage channels (CH1 through CH4) allowing you to quickly save and recall optimal temperature and airflow configurations.
- Magnetic Hibernation Mode: Equipped with an intelligent TJ-218 aluminum bracket. Placing the handle into its cradle instantly triggers an automatic cooling cycle followed by immediate sleep mode to save energy and protect the heating element.
- Temperature Calibration & UI Control: Features built-in sensor closed-loop zero-crossing microcomputer controls for highly stable thermal output. System functions enable seamless user calibration, Celsius/Fahrenheit conversion, and a toggleable buzzer button sound.
- Interchangeable Air Outlets: Compatible with both straight and spiral uniform exhaust heating. It includes an easy quick-change nozzle function that requires no specialized tools even at high operating temperatures.
Package ContentS.
When purchasing from an authorized supplier such as SMZ , the standard retail package includes:

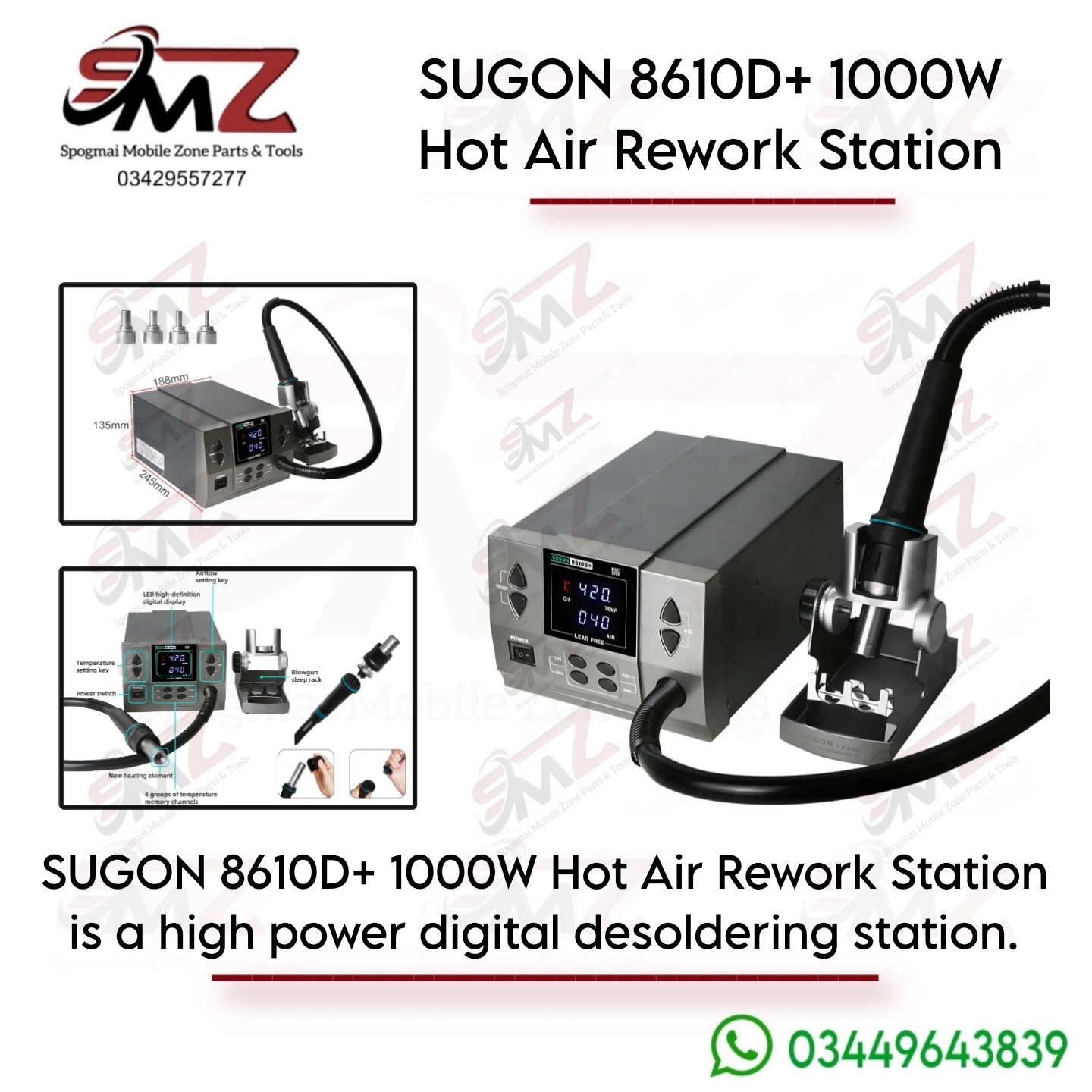

- SUGON 8610D+ Main Station
- Hot Air Gun Handle with 7B Heating Core
- TJ-218 Air Gun Bracket/Stand
- 4 Specialized Air Nozzles: Sizes 5#, 8#, 10#, and 12#
- AC Power Cable & User Manual
