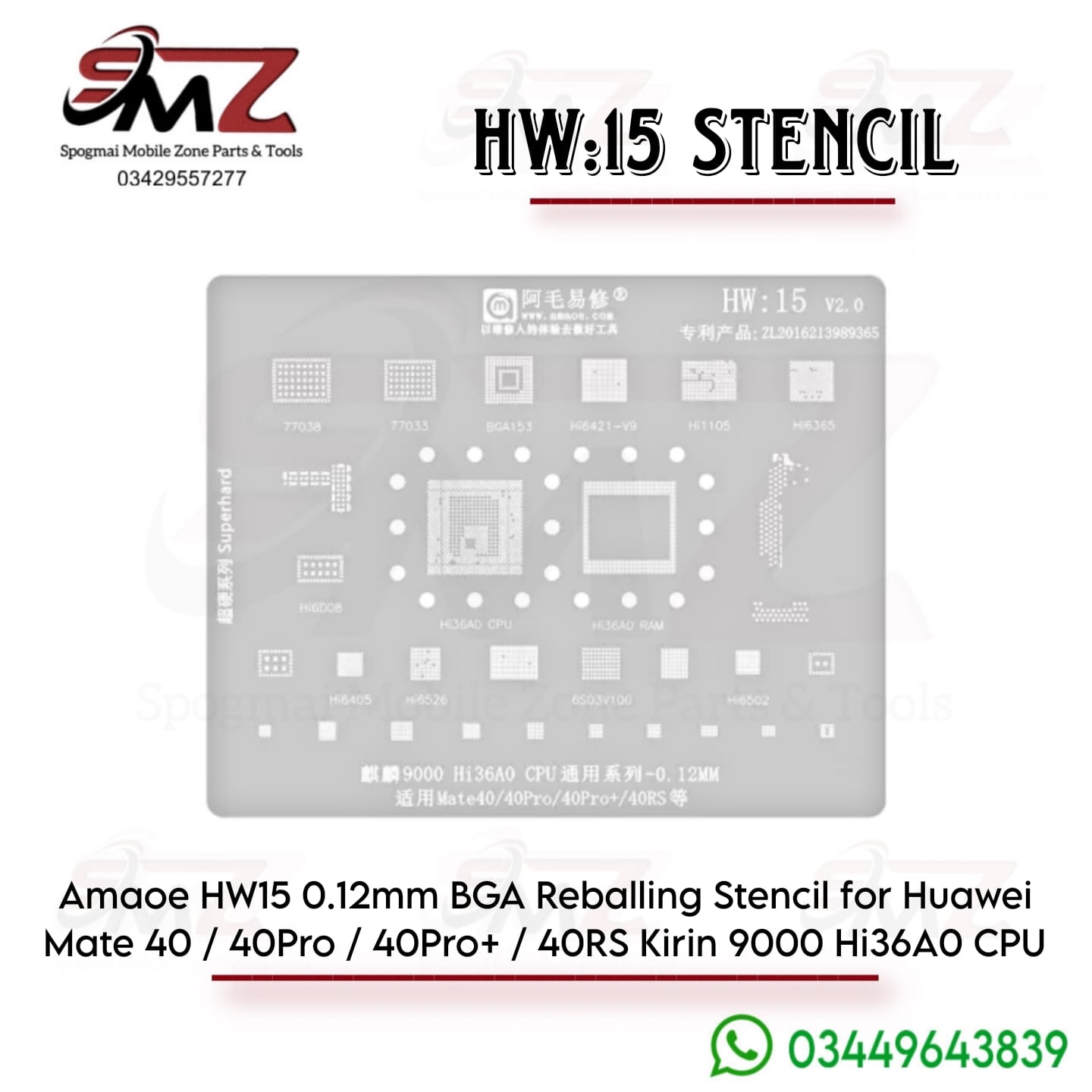

Supported Components & ICs
The HW15 configuration is mapped specifically to handle the architectures of premium-tier processors and supporting chips, including:
- CPU: Kirin 9000 (Hi36A0)
- RAM: Accurately aligns the layered RAM chips over the CPU
- Power & Audio ICs: Hi6365, Hi6D08, Hi6405, and Hi6526
Compatible Phone Models
This stencil features dedicated layouts to match the hardware footprint of the following flagship series:
- Huawei Mate 40
- Huawei Mate 40 Pro
- Huawei Mate 40 Pro+
- Huawei Mate 40 RS (Porsche Design)
Key Specifications
- Thickness: 0.12 mm (standard professional micro-soldering thickness to ensure proper solder ball height without overflowing).
- Material: High-grade laser-cut stainless steel engineered to combat thermal expansion and deformation under high heat.
- Design Features: Anti-bulging step design and square-centered alignment holes to help prevent the stencil from warping during heat gun applications.
