Key Specifications & Features
- Function: It is a buck-mode fast-charging controller that monitors battery temperature, charging safety timers, and provides overvoltage/overcurrent protection.
- Thermal Regulation: It automatically scales down the charging current if the chip’s internal temperature exceeds 110°C to prevent overheating.

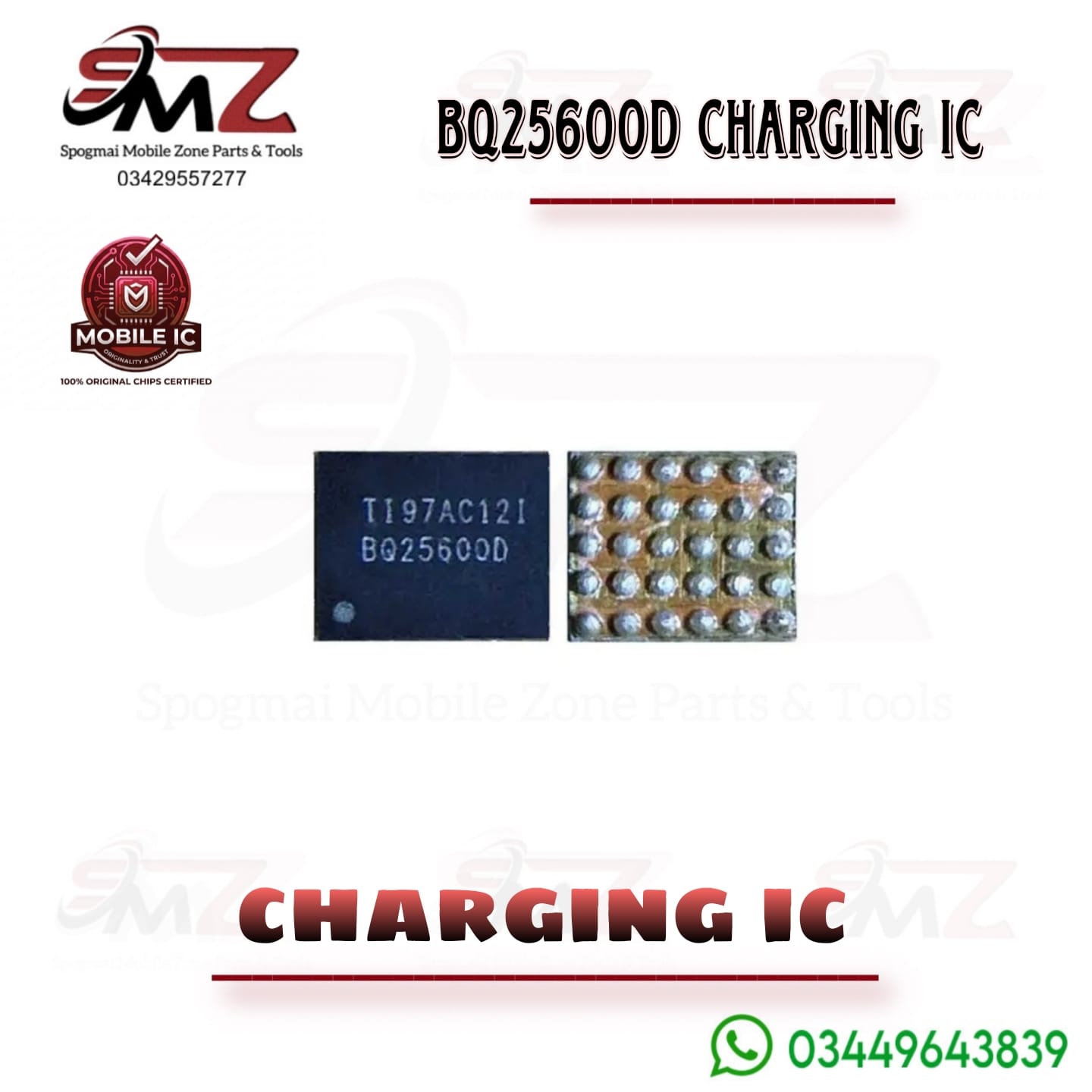

- Package Type: It comes in a very compact 30-ball Wafer Chip Scale Package (WCSP) measuring just 2.0 mm × 2.4 mm.
- Detailed Technical Data: You can access the official electrical specifications in the Texas Instruments BQ25600D Datasheet.
Common Compatible Devices
This IC is widely utilized in the mobile repair industry as a replacement part for several smartphone brands. It is frequently found on the motherboards of the following devices:
- Infinix: Hot 12 Play, X662, X650, X625, X6812, X690
- Tecno: Spark 4, Camon 11, KC2
- Oppo & Samsung: Reno 2, Galaxy A10s
Repair & Purchasing Notes
- Soldering Required: Because it is a BGA/WCSP microchip, installing a new unit requires professional hot-air SMD soldering skills and microscopic precision.
