Key Technical Specifications
- Charging Current: Supports up to 5-A fast charging with a 1.5-MHz switching frequency.
- Efficiency: Delivers up to 93% charge efficiency at 2 A and 91% at 3 A.
- Input Voltage: Handles a wide input voltage range from 3.9 V to 14 V.
- USB OTG Support: Features an integrated boost converter for USB On-The-Go (OTG) output up to 2.4 A.
- Control Interface: Uses I²C serial interface for flexible, autonomous system control.
- Monitoring: Features an integrated 7-bit ADC to monitor battery voltage, temperature, and current.
Common Applications & Use Cases

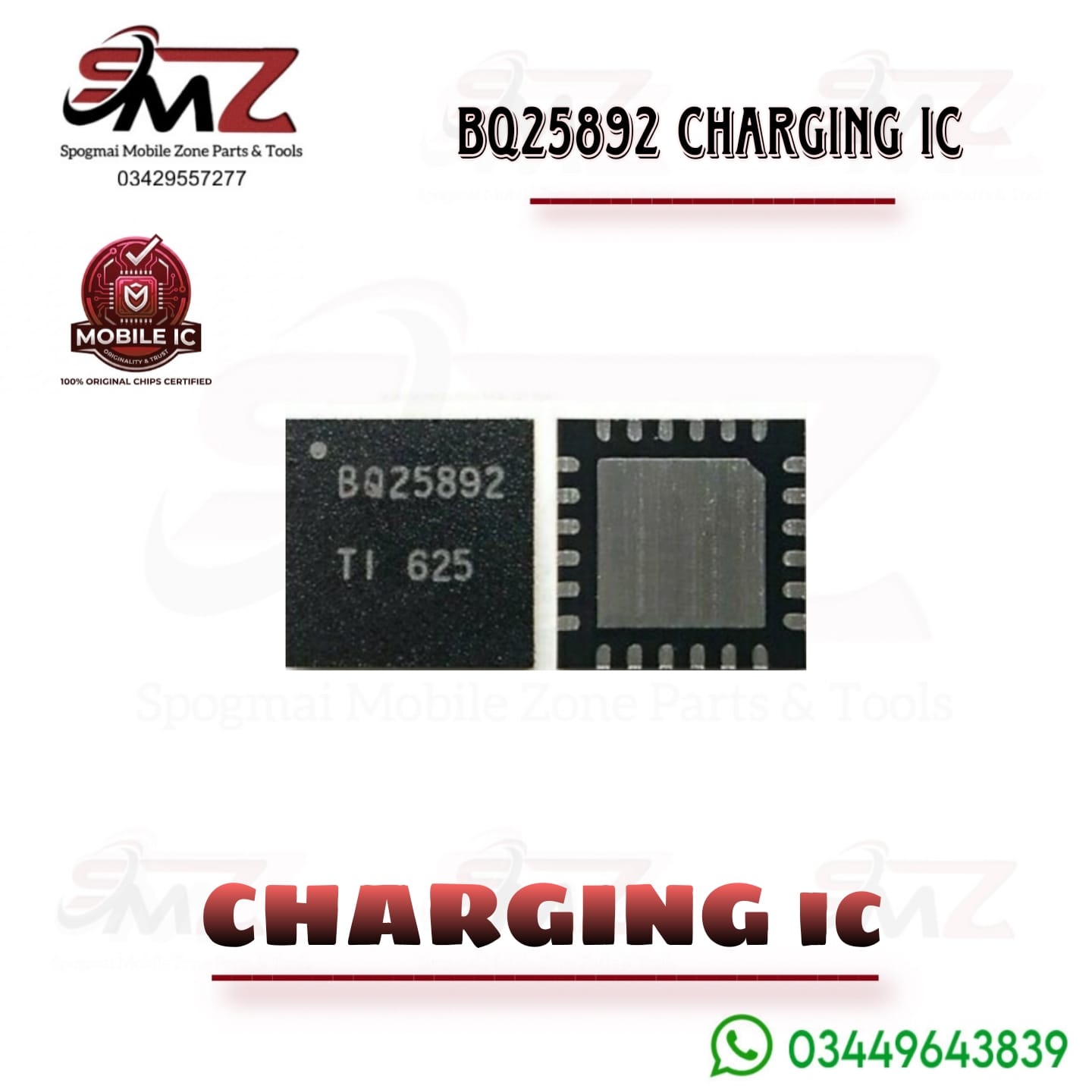

The BQ25892 is incredibly common in the mobile repair industry. It serves as the primary USB charge controller on motherboards for many popular Android smartphones, including devices from:
- Huawei (e.g., Mate 8, P9)
- Xiaomi / Redmi (e.g., Redmi Note 5)
- Oppo, Vivo, Tecno, and Infinix
Failure Symptoms
When this IC burns out or gets damaged, a mobile device typically exhibits the following motherboard-level faults:
- No charging or the device fails to recognize a USB cable.
- Fake charging, where the lightning indicator shows but the battery percentage never increases.
- Fast charging failure, dropping down to slow, legacy charging rates.
- Severe overheating near the power section during plug-in.
