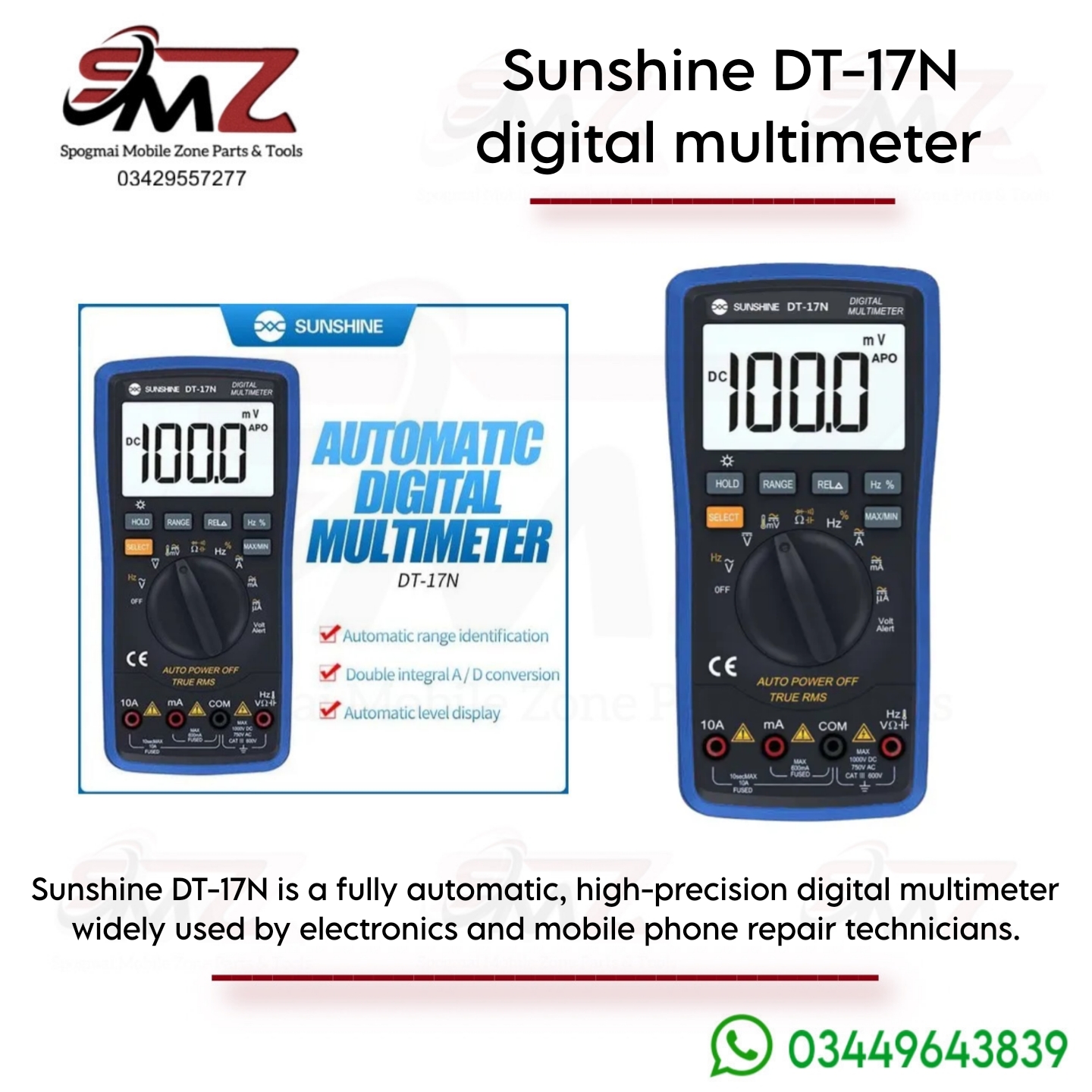

Key Specifications & Performance
-
- Display & Readout: Features a large 21mm high-visibility LCD screen with a maximum display reading of 5999 counts.
- Backlight Function: Includes a built-in backlight with a 15-second automatic turn-off delay for working in low-light shop environments.
- Sampling Rate: Refreshes data quickly at approximately 3 times per second.
- Power Source: Driven by a standard 9V battery.
- Measurement Tech: Utilizes stable double-integral A/D conversion and True RMS for precise AC measurements.
Versatile Testing Capabilities
-
- Basic Parameters: Accurately measures AC/DC voltage, AC/DC current (up to 10A), and resistance (ranging from 600Ω up to 60MΩ).
- Advanced Diagnostics: Features dedicated testing functions for Capacitance (nano-farad testing), Diodes, and Frequency (Hz).
- Circuit Continuity: Includes a crisp continuity buzzer for fast tracing and troubleshooting.
- Dual Temperature Tracking: Measures temperatures from -20°C to 1000°C (supporting both Celsius and Fahrenheit scales) using an external thermocouple probe, making it easy to test liquid and solid component temperatures.
Built-in Safety Features
-
- Smart Anti-Burn Protection: Integrates full-range overload protection and a dedicated high-voltage safety alarm.
- Insulation: Built with rugged, double-insulated structural housing designed for daily workshop abuse or fieldwork.
In the Box
When purchased new, the tool typically ships with the multimeter unit, a pair of sharp, gold-plated tip PVC probe leads optimized for micro-component testing, a temperature thermocouple probe, and an English/Chinese user guide.
