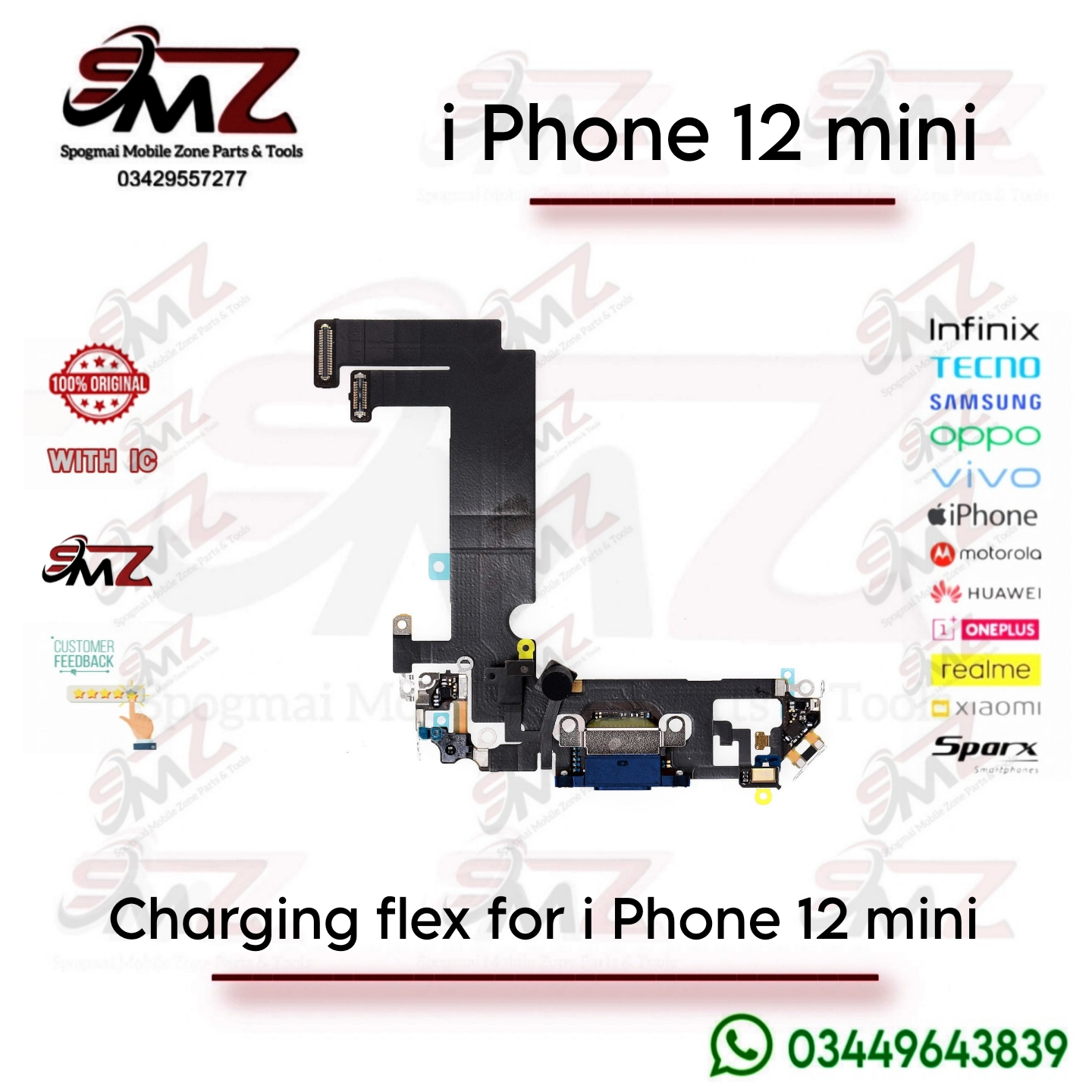

⚙️ Component Overview & Technical Specifications
- Apple Part Number: Commonly indexed as 821-02611.
- Integrated Components: The assembly consists of the physical Lightning dock connector, the primary lower voice microphone, and connections for cellular/antenna grounding plugs.
- Color Matching: The visible plastic trim inside the charging port opening is color-coded to match the external chassis of the phone (available in Black, Blue, Green, White, and Red).
- Primary Functions:
- Battery charging and power delivery.
- Wired data synchronization with a computer.
- Relaying your voice during phone calls and audio recordings via the integrated microphone.
- Connecting to Lightning-based accessories (like headphones or external storage).
⚠️ Warning Signs of a Failing Flex Cable
When this assembly becomes damaged—often due to liquid ingress, physical wear, or debris—it will impact multiple systems:
- Power Issues: Intermittent charging, slow charging, or a complete failure to recognize the USB-C to Lightning cable.
- Audio Issues: People cannot hear you on standard voice calls, or the microphone records only static.
- Boot-Looping / Crashing: A severely damaged charging port flex can cause the phone to continuously restart. The iOS operating system checks a thermal sensor located on the flex cable during bootup; if it cannot read this sensor, it triggers a kernel panic and forces a reboot roughly every 3 minutes.
