⚙️ Integrated Components & Functions

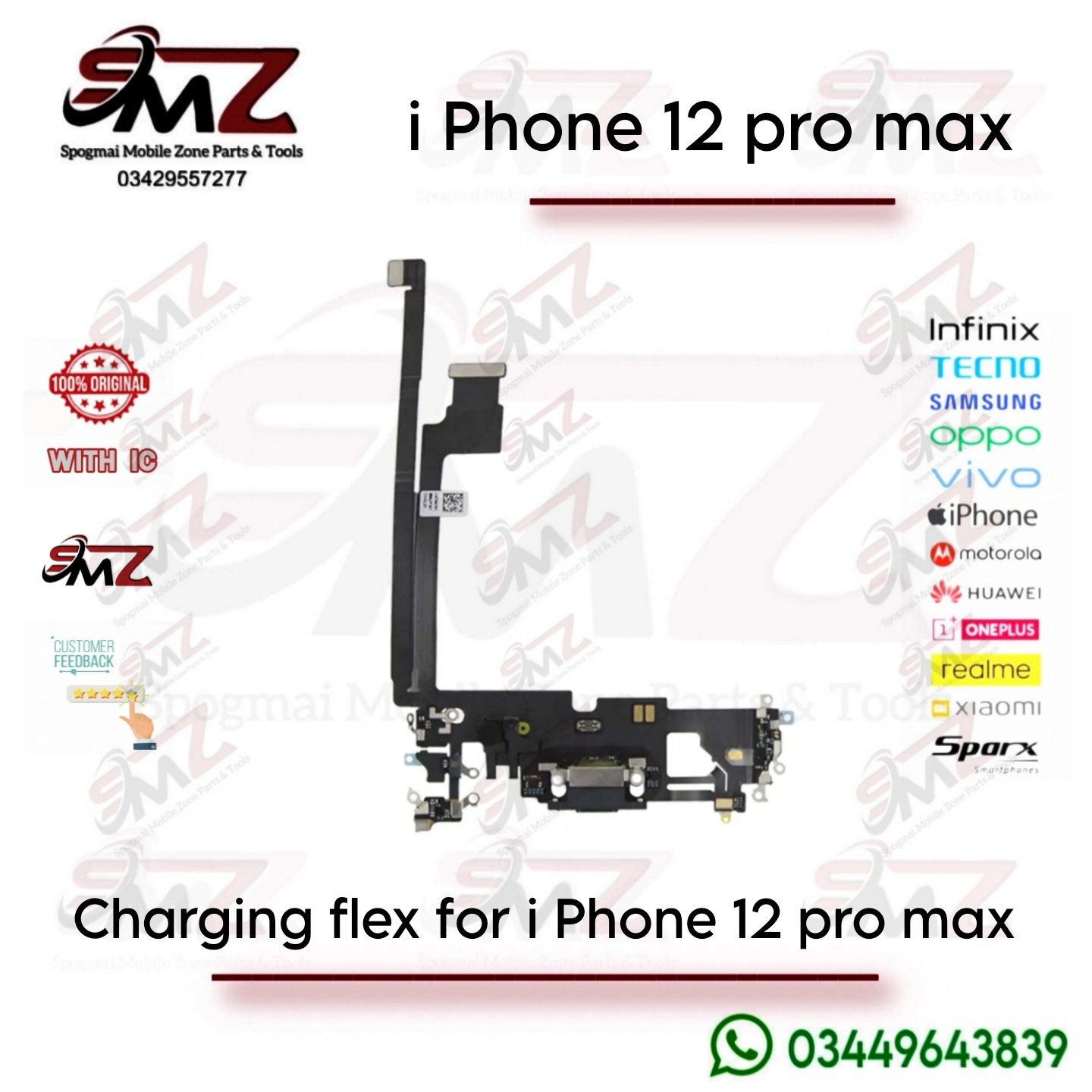

The charging port flex cable assembly houses several vital components on a single ribbon board:
- Lightning Connector Port: Handles physical charging and hardwired USB data transfer to computers.
- Primary Microphone: The main microphone used for voice calls, voice memos, and audio recording sits directly on this board.
- Antenna Contacts: Includes connection points that bridge cellular and network signal hardware to the logic board.
- Interlocking Connectors: Integrates directly with plugs for the Taptic Engine (vibration motor) and the lower loudspeaker.
🔍 Technical Specifications & Compatibility
- Official Apple Part Number: Typically designated as 821-02541 (or compatible regional variants).
- Device Compatibility: Tailored strictly for the iPhone 12 Pro Max (Models: A2411, A2342, A2410, A2412). Note: It is physically larger than and completely incompatible with the standard iPhone 12 or 12 Pro cables.
- Color-Coded Matching: The outer lip of the Lightning port is color-matched to the phone’s exterior frame. Replacement parts are distributed in Graphite/Black, Silver/White, Gold, and Pacific Blue.
⚠️ Common Symptoms of Failure
You likely need to replace this flex cable if your phone experiences:
- Intermittent charging or having to wiggle the Lightning cable at specific angles.
- Total failure to charge or connect to a PC via USB.
- People cannot hear you during normal voice calls (failed bottom microphone).
- Random or frequent connection drops when plugged into a power source.
