⚙️ Core Technical Specifications
-

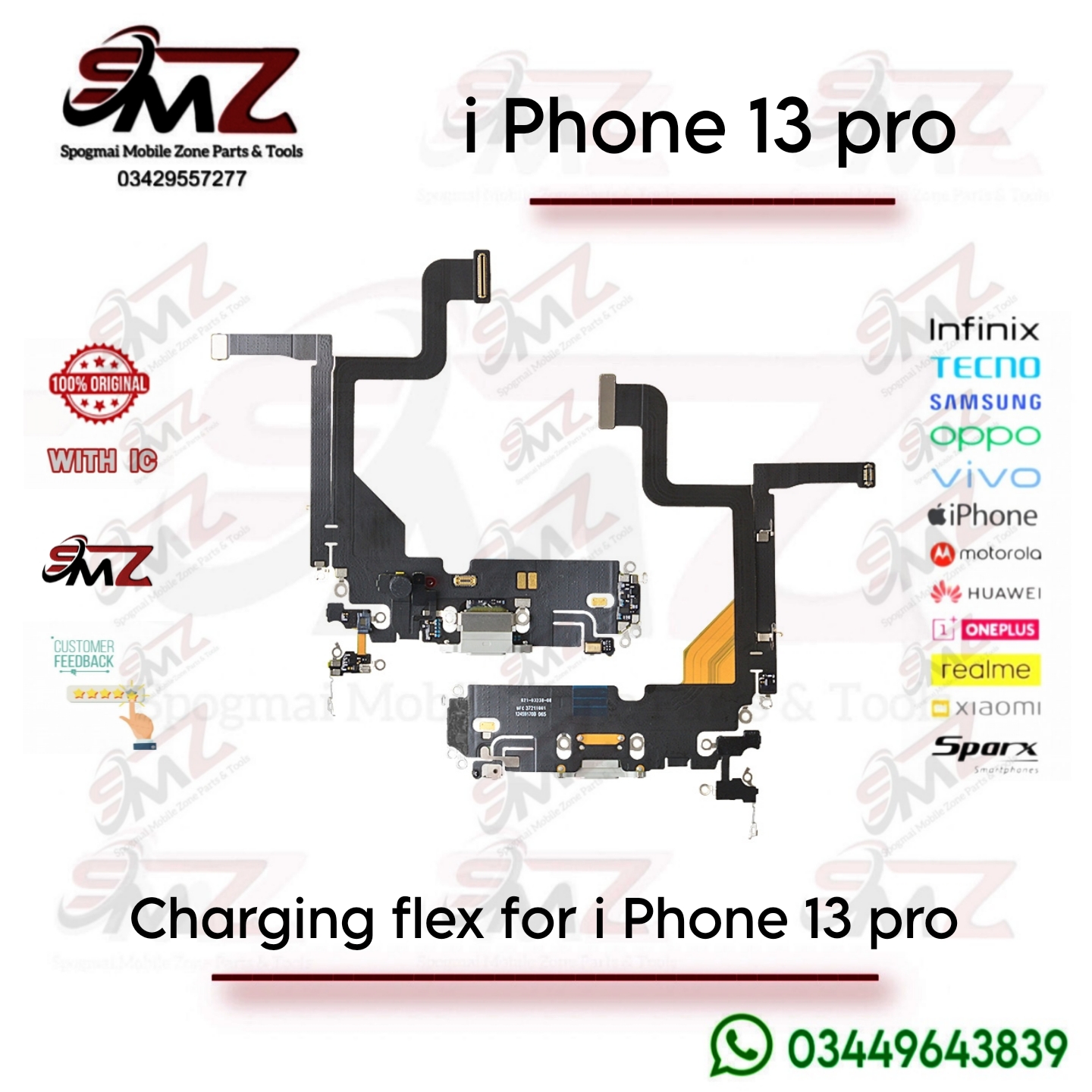

- Device Compatibility: Explicitly for the iPhone 13 Pro. It is physically and electrically different from the standard iPhone 13, 13 Mini, and 13 Pro Max.
- Supported Model Numbers: Compatible with Apple models A2638, A2483, A2636, A2639, and A2640.
- Connection Type: Features a precision Lightning port socket connected to a flexible printed circuit (FPC) snap-on connector that anchors directly onto the logic board. No soldering is required to replace the assembly itself.
🔍 Integrated Components & Functions
The assembly is called a “full assembly flex” because it packs several critical components onto a single ribbon strip:
- Lightning Port Connection: The physical interface used to take in power from an external wall adapter and manage hardwired data synchronization (such as linking to a computer via iTunes/Finder).
- Built-in Protection IC (Integrated Circuit): Cheap, lower-tier replacement cables lack the complex onboard logic microchips. A flex cable built with IC ensures proper voltage regulation, stable fast charging, and secure handshakes with the phone’s primary power management IC (PMIC).
- Primary Lower Microphone: The phone’s bottom voice microphone is soldered straight onto this ribbon cable. Replacing this flex resolves issues where people cannot hear you during normal phone calls.
- Antenna Signal Pass-Through: Part of the device’s lower cellular and Wi-Fi antenna pathways ground out and route directly through this component.
- Barometric Pressure Sensor Link: Holds the connection paths for structural sensors.
