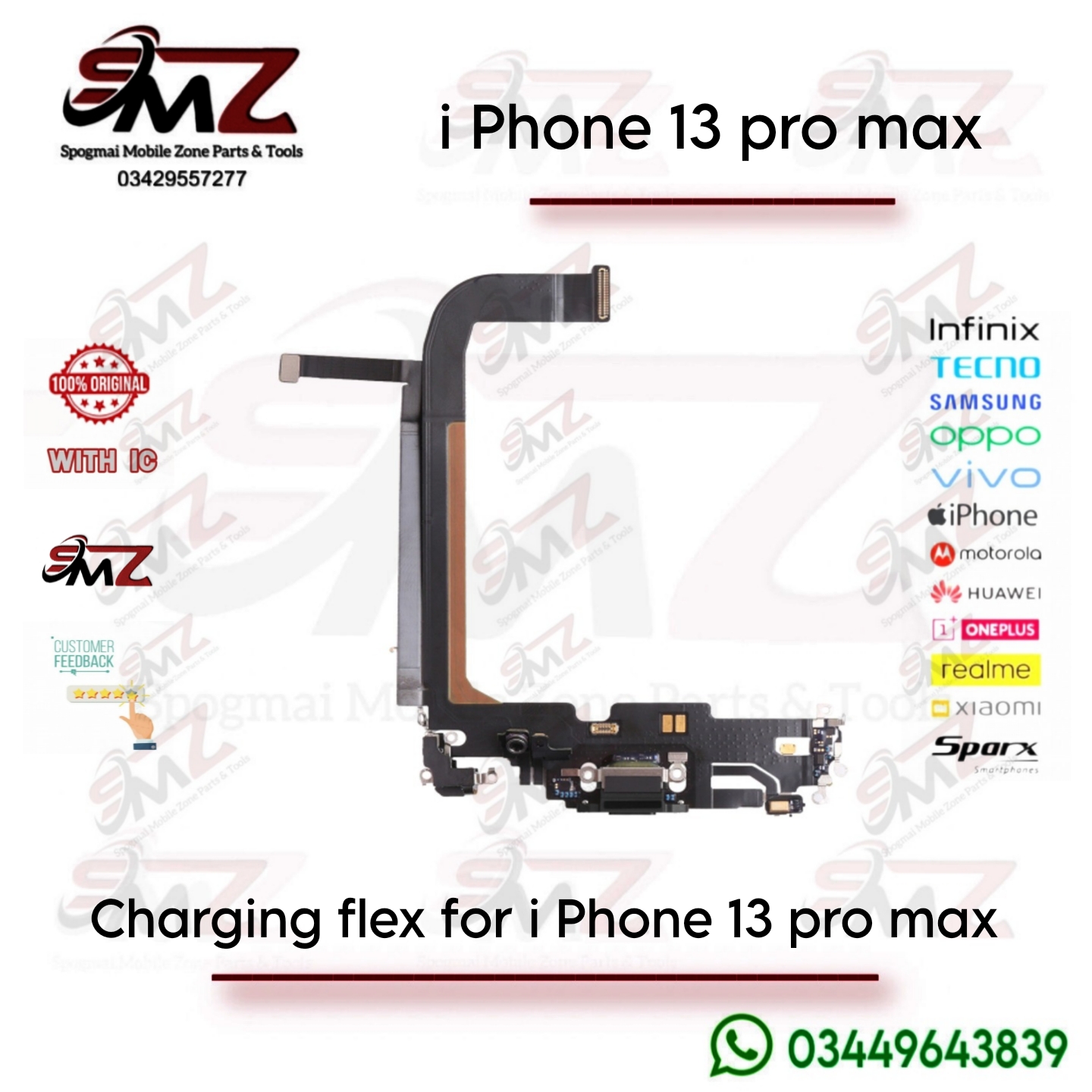

📋 Technical Specifications & Compatibility
- Supported Models: Fully compatible with Apple iPhone 13 Pro Max variants A2643, A2484, A2641, A2644, and A2645. (Note: It is physically completely different and not compatible with the standard iPhone 13 or 13 Pro).
- Colors: Available in original matching matching chassis colors (Graphite, Gold, Silver, Sierra Blue, and Alpine Green) so the inside color of the port mouth matches your frame cleanly.
🛠️ Integrated Functions (All on One Ribbon)
The charging dock is not just a port; it is an assembly that handles several major hardware processes:
- Lightning Port Connection: Manages fast wired charging power delivery and high-speed data transfer/syncing via iTunes or Finder.
- Integrated IC Chip: Regulates electrical currents, prevents power surges, and communicates with original Apple chargers to authorize fast-charging protocols safely.
- Primary Microphone: Houses the lower bottom microphone used for standard cellular voice calls and voice notes.
- Antenna Contact Points: Routes critical cellular and signal network paths to the lower chassis antennas.
⚠️ Common Symptoms Fixed by This Part
Replacing this component solves issues beyond a dead battery port, including:
- The phone only charges when the cable is wiggled or bent at specific angles.
- Complete failure to take a charge or slow/intermittent power draw.
- Callers cannot hear you, or your audio sounds muffled (due to a failing integrated lower microphone).
- Drops in cellular signal network connectivity.
- Boot looping: A damaged or non-IC replica lower mic line can trigger a safety sensor error, causing the iPhone 13 Pro Max to restart automatically every 3 to 5 minutes.
