⚙️ Full Component & Hardware Details

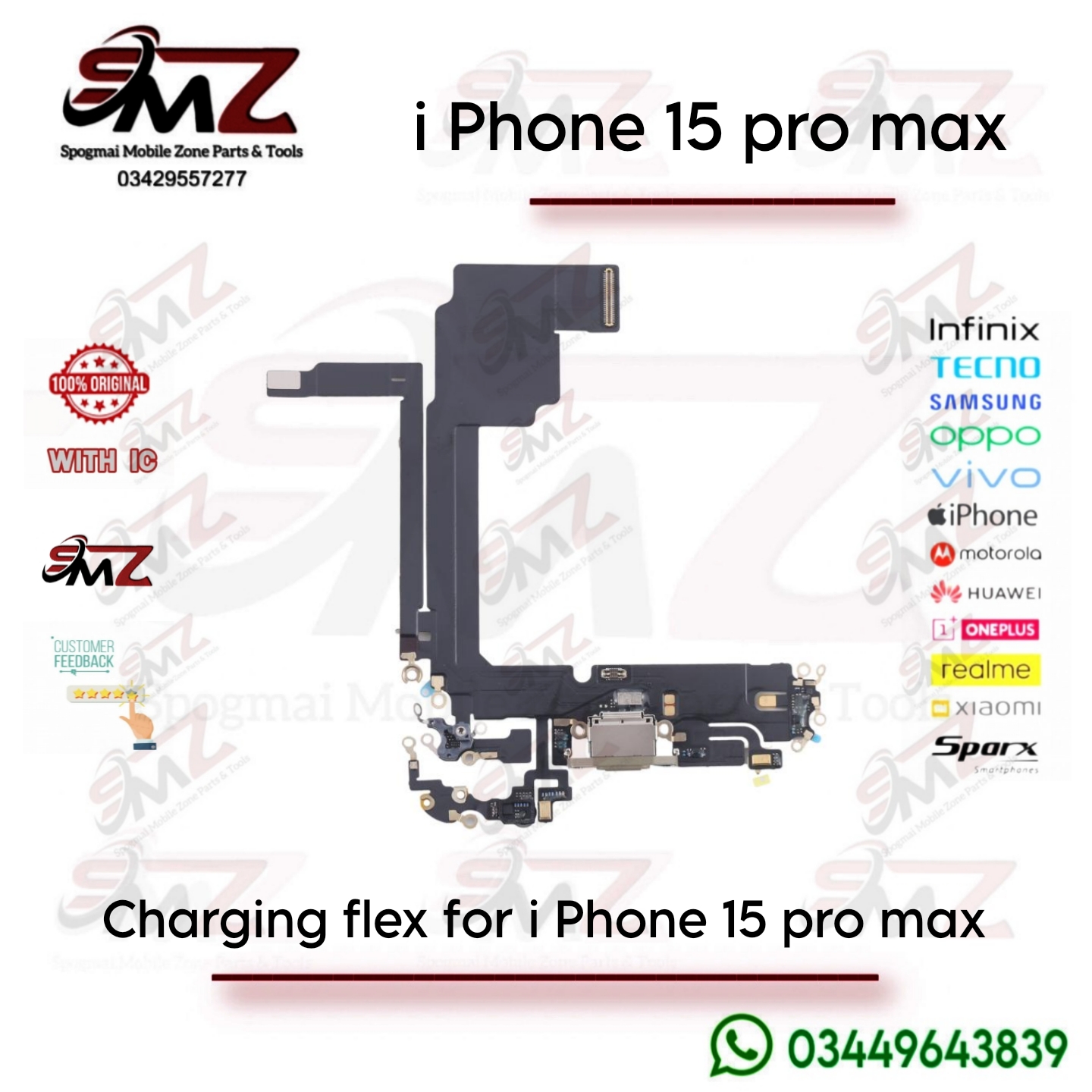

The charging port flex is not just a power inlet. It is a consolidated lower-dock assembly that houses several crucial components:
- USB-C Connector Port: Configured specifically for the iPhone 15 Pro Max to support both high-speed data transferring and fast charging.
- Primary Bottom Microphone: Built directly onto the flex ribbon. Note: Failing to remove the clear factory plastic pull-tabs from a new replacement flex will cause muffled microphone audio.
- Cellular Antenna Paths: Integrates routing for the lower cellular antenna array.
- Logic Board Interface Connector: A precision ZIF terminal that snaps cleanly into the bottom layer of the main motherboard.
🧠 The “WITH IC” Aspect (Crucial Clarification)
When suppliers label an aftermarket or OEM-grade charging flex as “With IC,” it refers to the basic onboard power management, filtering, and data-routing surface-mount chips present on the ribbon assembly itself. This is vital for full computer recognition and automated power negotiation.
⚠️ Important Diagnostic Distinction for Technicians:
The core, heavily encrypted logic chips that manage advanced Power Delivery (PD) and USB control are not located on the flex cable—they are located on the main logic board (motherboard):
The core, heavily encrypted logic chips that manage advanced Power Delivery (PD) and USB control are not located on the flex cable—they are located on the main logic board (motherboard):
- The Charging/Tigris IC (Part #338S00946-B0): Sits directly on the logic board. If your phone is dead, draws 0A, or gets intensely hot near the motherboard middle layer, this chip on the board is usually fried (often from low-quality third-party chargers), not the flex cable.
- The USB Controller & EPROM IC Matrix: These chips are highly encrypted and digitally “paired” to one another on the board. If a motherboard-level USB IC fails, it requires micro-soldering paired donor chips; replacing just the flex cable will not fix it.
📱 Device Compatibility & Part Numbers
- Official Apple Part Number: 821-04442 (or iFixit alternate IF479-018-2).
- Model Code Variations: This specific flex is universally compatible across all regional variants of the iPhone 15 Pro Max:
- A2849 (United States)
- A3105 (Canada, Mexico, Japan)
- A3106 (Global/International)
- A3108 (China, Hong Kong)
