🛠️ Technical Specifications & Component Details

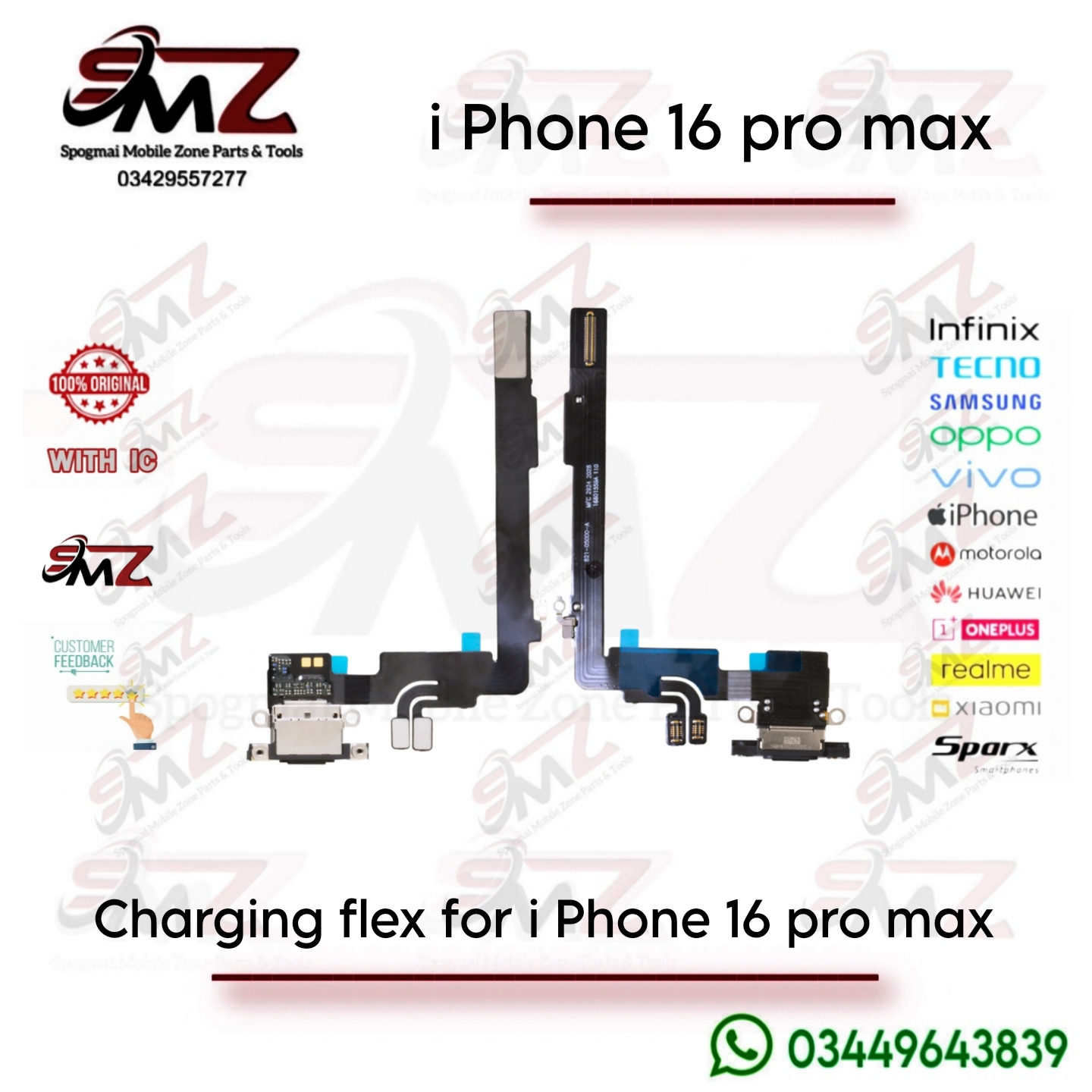

The lower assembly is highly integrated, containing multiple subsystems on a single flexible printed circuit (FPC) board. When purchasing a variant “With IC,” you are getting a premium or OEM-grade replacement that replicates all surface-mounted chips required for the phone to function properly:
-
- USB-C Connector Port: Upgraded to handle iPhone 16 Pro Max high-speed data transfer and rapid USB Power Delivery (USB-PD) protocol.
- Integrated Circuits (IC): The onboard IC chips manage secure data line negotiation, over-voltage protection (OVP), and device-handshake authentication. Cheaper non-IC versions often freeze, cause slow charging, or fail to sync data.
- Lower Primary Microphones: Includes the physical microphone elements responsible for voice calls, voice memos, and lower audio input.
- Cellular Antenna Contacts: Built-in grounding points and signal pads that interface directly with the phone’s frame to ensure optimal cellular reception.
- Model Compatibility: Engineered strictly for iPhone 16 Pro Max global variants: A3084, A3295, A3296, and A3297.
🛑 Symptoms This Part Will Fix
Replacing the full flex cable assembly is the definitive hardware solution if your phone experiences:
- Intermittent or Zero Power Input: The phone charges only at specific angles, or fails to recognize genuine USB-C cables entirely.
- Permanent “Moisture Detected” Errors: A corrupt or shorted thermistor/IC loop on the flex can trigger a continuous moisture warning, even when dry.
- Audio and Mic Failures: The person on the other end of a call cannot hear you, but loudspeaker/Bluetooth audio works fine.
- Data Sync Drops: The phone charges from a wall adapter but fails to connect or transfer files to a PC/Mac.
