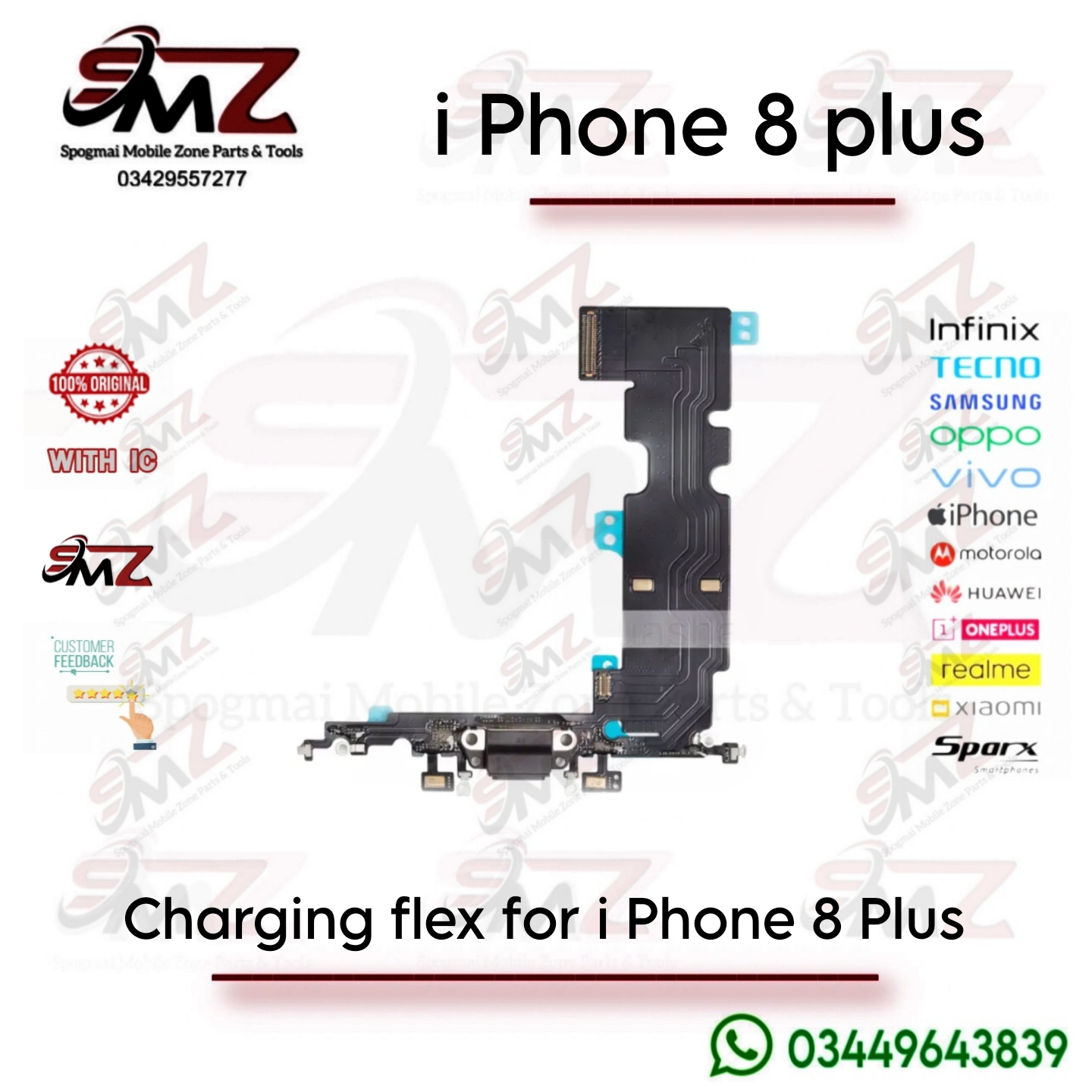

1. Components on the iPhone 8 Plus Charging Flex Ribbon
The physical flexible ribbon cable glued to the bottom of the iPhone 8 Plus housing includes several integrated parts:
- Lightning Port (Dock Connector): An 8-pin port managing 15W wired fast charging (Power Delivery 2.0) and USB 2.0 data transfers.
- Dual Bottom Microphones: Built directly into the flex ribbon. One handles standard phone calls, and the other manages voice recordings/video audio.
- Taptic Engine & Loudspeaker Contacts: Conductive pads on the flex route signals from the motherboard to power the vibration motor and lower speaker.
- Cellular Antenna Interconnect: Relays wireless signals from the bottom antenna band up to the motherboard.
2. The Motherboard Charging ICs (The Power Control)
The charging flex itself does not house the intelligent power management ICs. Instead, it plugs into the motherboard, where two primary chips control the charging logic:
| Chip Code Name / Technical Name | Location on Logic Board | Core Function | Typical Failure Symptoms |
|---|---|---|---|
| Hydra IC / Tristar (1612A1) | Main Motherboard | Manages USB logic negotiation, accessory detection, and data line routing. | Fake charging (shows lightning bolt but percentage drops), phone charges only when turned off, or “Accessory Not Supported” errors. |
| Tigris / Charger IC (SN2501 / U3300) | Main Motherboard | Regulates the direct main current flow (VBUS) from the USB cable into the battery pack. | Phone completely dead, will not draw any amperage on a USB meter, or rapid overheating near the motherboard middle layer. |
3. Diagnostic Breakdown: Flex Cable vs. Board IC
When troubleshooting an iPhone 8 Plus that refuses to charge, micro-soldering technicians differentiate between a flex failure and an IC failure through clear indicators:
Look for a Faulty Charging Flex Cable if:
- The Lightning cable feels loose or slips out of the port.
- The phone charges intermittently when you wiggle the cord.
- People cannot hear you during normal calls, but speakerphone works (indicating the flex’s lower mic is broken).
- The phone is recognized by a computer but won’t pull enough power to turn on.
Look for a Faulty Motherboard IC if:
- You swap in a brand-new original flex, and it still won’t pull any power.
- The device pulls a constant
0.00Aor a locked0.06Aerror on a USB multi-meter port. - The battery drains incredibly fast, or the phone gets intensely hot even when sitting idle on a desk.
