⚙️ Integrated Components & Functions

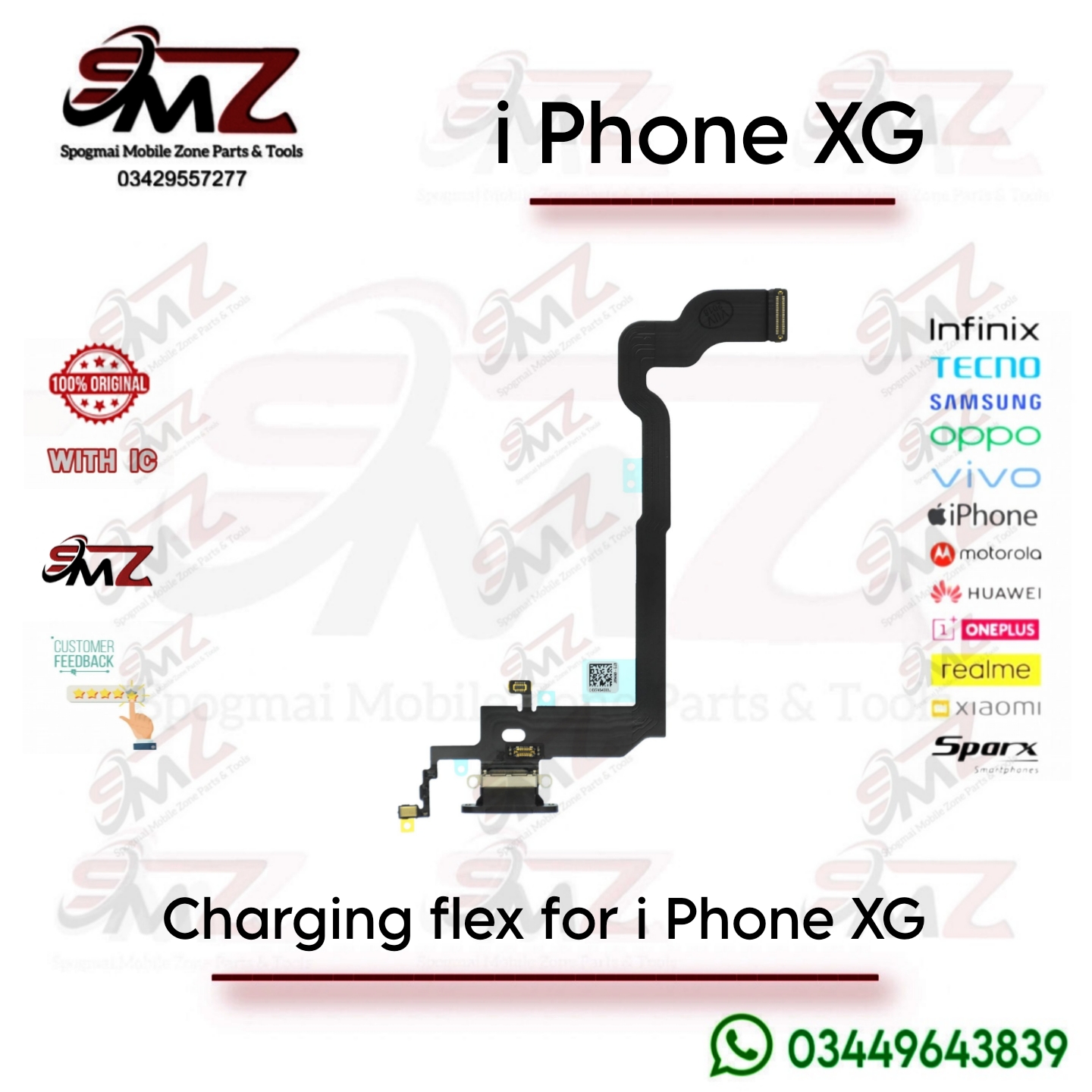

The charging flex ribbon is a unified component that aggregates multiple vital hardware parts onto a single flexible PCB. It connects directly to the logic board and handles:
- Lightning Port Connector: Manages wired power delivery and physical USB data transfer to a computer.
- Primary Bottom Microphone: Responsible for capturing your voice during standard cellular voice calls.
- Loudspeaker Contact Brushes: Features physical contact pads that complete the circuit to drive the loudspeaker.
- Taptic Engine Connector: Relays signals to activate the physical vibration motor.
- Antenna Connections: Houses contact traces that bridge cellular/Wi-Fi network signals from the bottom frame to the motherboard.
🔍 “With IC” vs. “Without IC” (Original vs. Copy Components)
Third-party parts markets supply two primary grades of this flex ribbon:
| Feature | With IC (Original/Premium Grade) | Without IC (Cheap Copy/Base Grade) |
|---|---|---|
| Power Control IC | Present. Includes surface-mount chips for power regulation. | Missing. Replaced by bare-wire jumps or passive resistors. |
| Charging Behavior | Supports full fast-charging speeds safely. | Chronically slow charging or sudden drops in battery health. |
| Data Syncing | Fluid USB connectivity to computer suites. | Frequent “Accessory Not Supported” errors or failed syncing. |
| Microphone Clarity | Crisp, noise-filtered audio capture. | Muffled voice quality or faint static during phone calls. |
| Signal Reception | Maintained cellular and Wi-Fi signal strength. | Weakened network connection or intermittent dropped signals. |
