🛠️ Core Training Functions

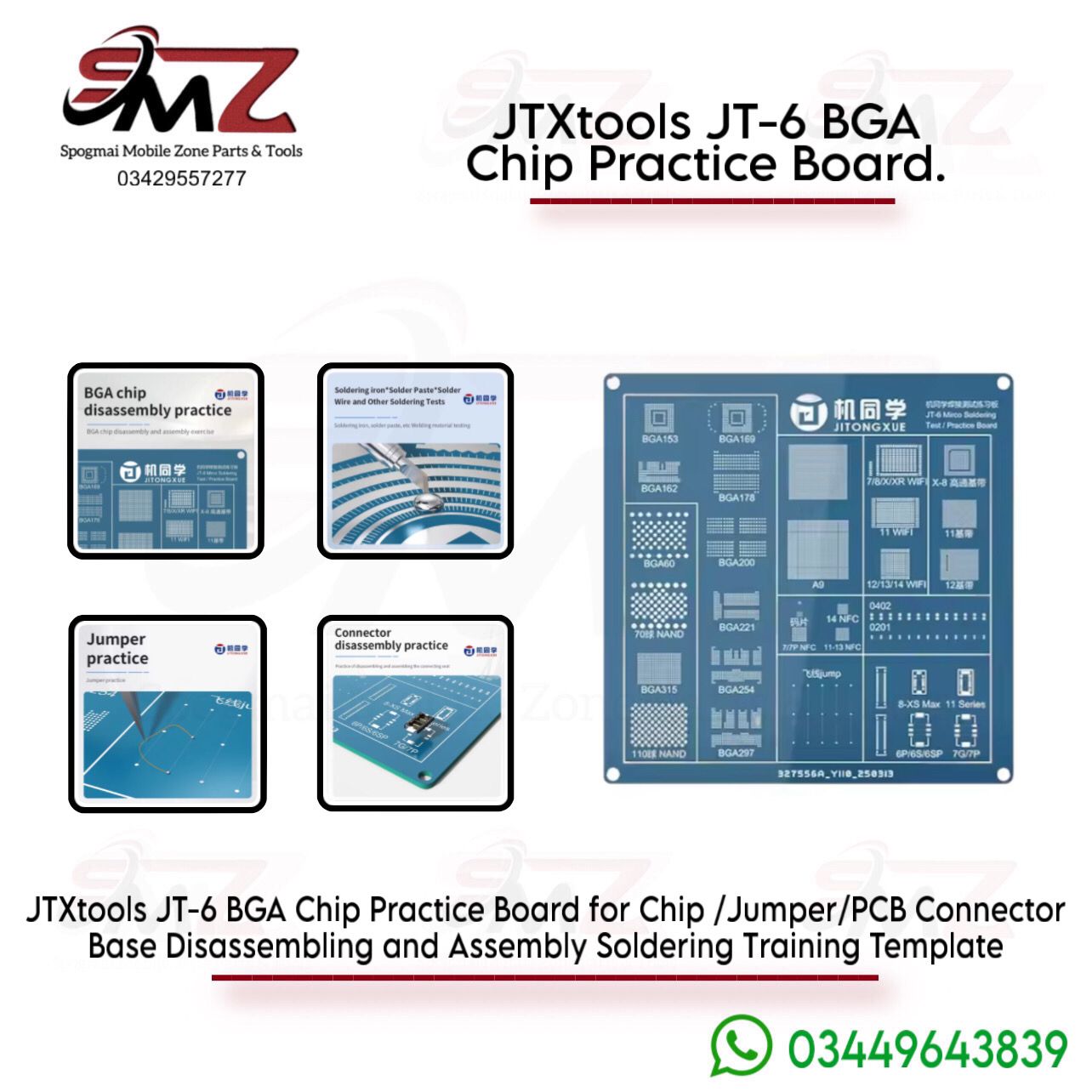

- BGA Rework & Reballing: Features dedicated landing grids and pads to practice advanced hot-air station chip removal, IC chip replacement, and Ball Grid Array (BGA) alignment or reballing.
- Flying Wire & Jumper Techniques: Includes trace layouts specifically meant for training on micro-jumper wire connections, which are crucial for bypassing damaged, torn, or burnt motherboard traces.
- Connector Disassembly: Offers designated zones to practice desoldering and reassembling fragile plastic FPC connection sockets and connector blocks without melting them.
- Consumable & Tool Testing: Functions as a safe test bench to calibrate new soldering irons, evaluate hot air gun thermal profiles, and test the flow or residue of new solder paste and flux variants.
📐 Product Specifications & Build Quality
- Industrial Material: Built using a high-density, professional UT-6 certified FR4 substrate that resists blistering and layer separation under repeated heat cycles.
- Surface Finish: Treated with lead-free HASL or premium ENIG (Electroless Nickel Immersion Gold) pad coatings to simulate modern device logic boards.
- Microscope Optimized: The board’s layout, clear pad sizing, and contrasting text markings are optimized specifically for clear visibility under high-magnification digital or optical repair microscopes.
- Static Protection: Features an ESD-safe anti-static protective coating (rated up to 10⁹ Ω) to mimic professional static-controlled laboratory standards
