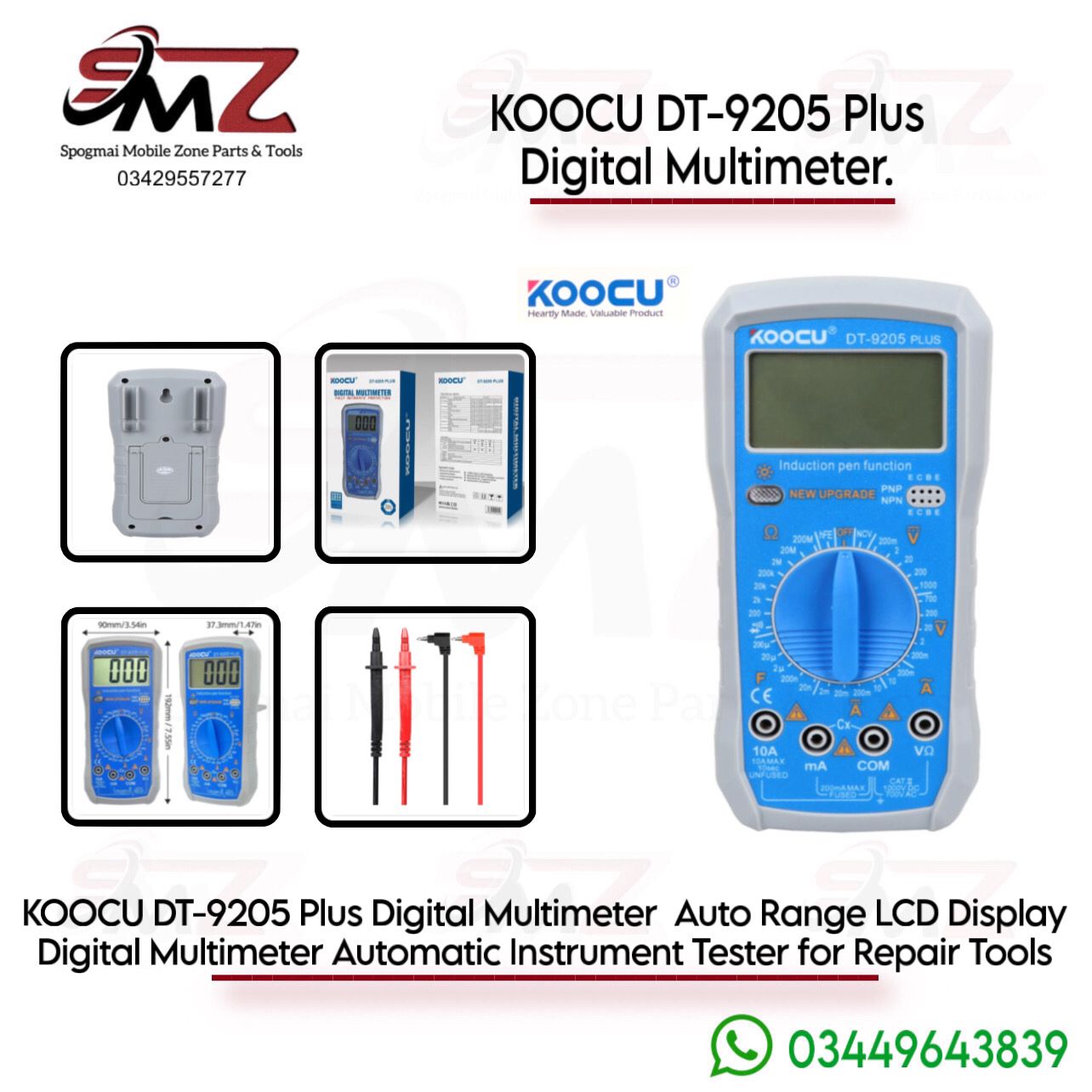

Core Technical Specifications
- Current Rating: Up to 10A (unfused or dual-fuse safety depending on variant).
- Safety Metrics: Rated for CAT II 1000V / CAT III 600V protections with an IP67-styled outer dust shield casing.
- Power Requirement: Runs on a standard 9V battery.
- Sampling Rate: Roughly 2 samples per second.
Key Measurement Capabilities
- Voltage Testing: Measures both AC and DC voltage parameters.
- Current Testing: Measures both AC and DC current limits up to 10A.
- Resistance: Checks component resistance values across multiple Ohm (Ω) selector limits.
- Capacitance & Diodes: Features dedicated modes to evaluate microfarad ratings and forward diode voltages.
- Transistor Testing (hFE): Dedicated slots for mapping NPN and PNP transistor values.
- NCV / Induction Pen Function: Includes a built-in contactless sensor mode to quickly scan for live alternating current lines without direct probe connection.
User Operational Safety Tips
- Start High: Always turn the manual dial to the highest range configuration first if you are unsure of the electrical load magnitude to avoid damaging the unit.
- Time Limits: Limit continuous testing of heavy high-ampere currents (close to 10A) to less than 10–20 minutes to mitigate overheating.
- Discharge Capacitors: Explicitly short-circuit and discharge any heavy electronic capacitors before touching them to the test leads to shield yourself and the device from residual voltage.
