Core Specifications

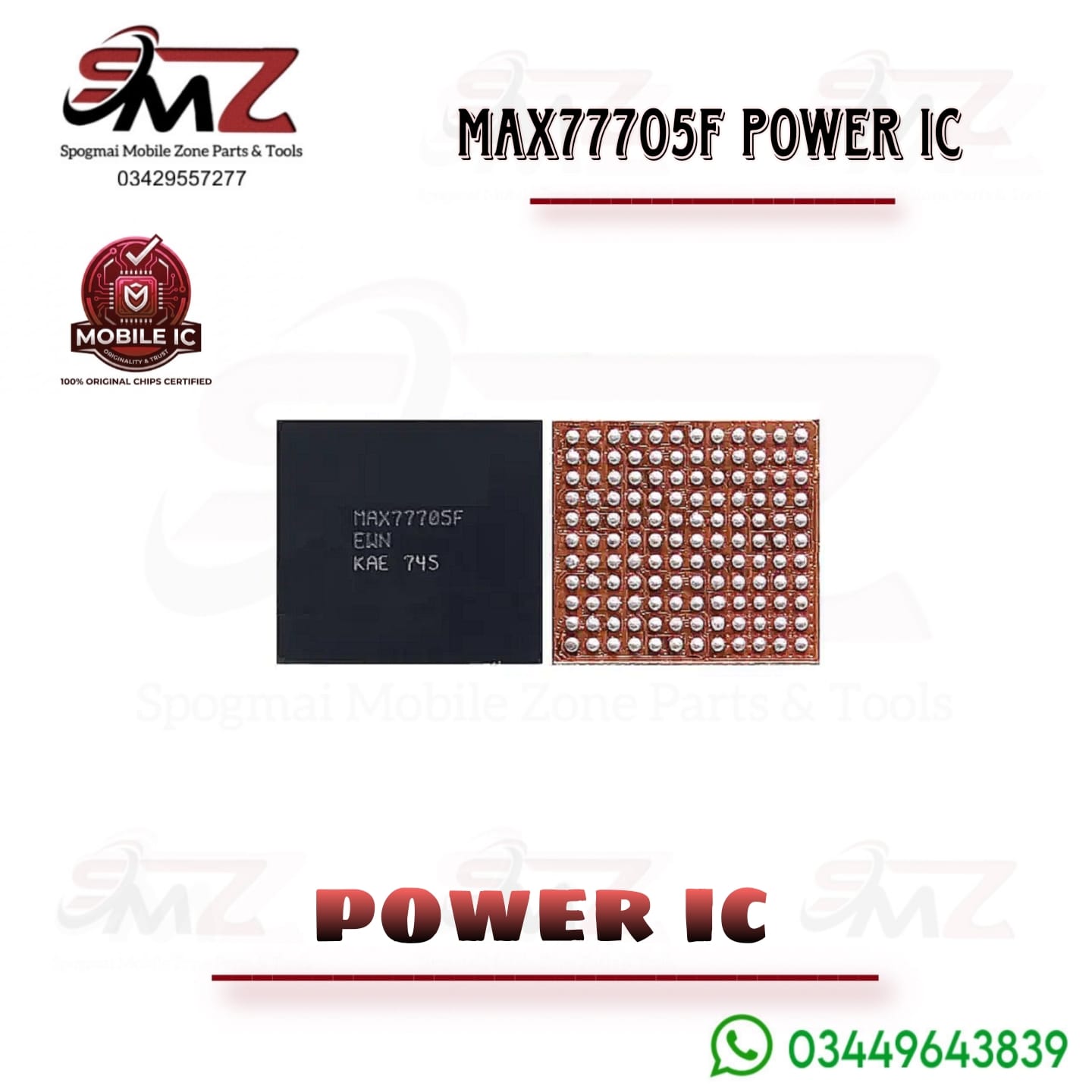

- Component Type: Power Management IC (PMIC) / Sub-PMIC / Charging IC.
- Package/Mounting Type: Ball Grid Array (BGA).
- Primary Function: Dynamically distributes, regulates, and supplies stable voltage from the battery source to core smartphone sub-circuits, including wireless charging and interface modules.
- Efficiency: High-efficiency power regulation optimized for preserving mobile battery lifespan.
Device Compatibility
The MAX77705F is standard equipment across several flagship mobile tiers, most notably
- Samsung Galaxy S9 Series: G960F, G960T, G960P, G960A, G960R4, G960V, G960U.
- Samsung Galaxy S9+ Series: G965F, G965T, G965P, G965A, G965R4, G965V, G965U.
- Samsung Galaxy Note 9 Series: N960F, N960T, N960U.
- Samsung Galaxy S10 Series: Select variants (interchangeable or cross-compatible in specific layout configurations alongside MAX77705C).
Repair and Installation Metrics
- Common Symptoms of Failure: Device failing to boot, rapid power draw, thermal issues during charging, or a total loss of wireless charging functionality.
- Removal Temperature: Recommended hot-air station output between 300°C to 350°C.
- Required Technique: Advanced micro-soldering and BGA reballing proficiency are mandatory for installation.
