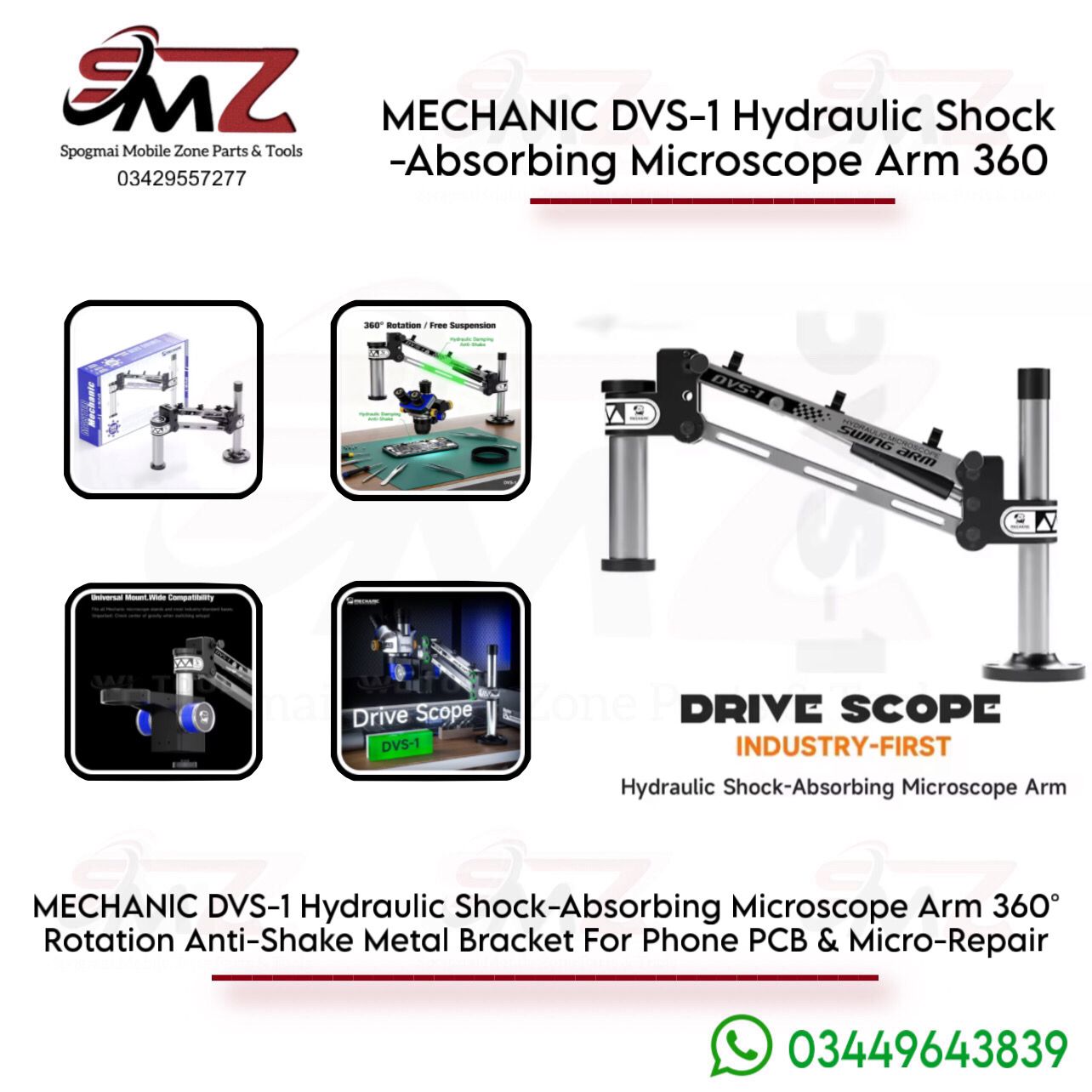

Key Features & Design
- Anti-Shake Damping: Uses a built-in hydraulic shock absorption system to eliminate table vibrations and ensure a steady microscope view.
- 360° Full Rotation: Allows multi-angle orientation so you can effortlessly push the arm out of the way or pull it into your workspace.
- Arbitrary Hovering: Features a free suspension design with manual resistance adjustment knobs to instantly lock the arm securely at any specific height or angle.
- Cable Management: Integrated routing clips run down the chassis to tame power and data wires for a clean workspace.
Technical Specifications
- Load Capacity: Supports hefty optical setups up to 6 kg.
- Swing Arm Range: Extends and retracts between 240 mm and 340 mm.
- Weight: Net weight of 2.4 kg (2.9 kg gross weight).
- Dimensions: Device footprint sits at 340 × 240 × 65 mm.
- Compatibility Note: Built with a 32mm connection hole that fits standard MECHANIC microscope stands and most industry-standard bases. Note: It is strictly incompatible with 25mm diameter focuser mounts.
