Key Specifications and Features
- Magnification Range: It features a continuous zoom from 6.5X to 60X. The zoom knob features satisfying tactile clicks at specific magnification points.
- Trinocular Design: Features a dedicated third port equipped with a 0.45X CTV CCD adapter. This allows users to mount an external microscope camera for simultaneous monitor viewing and recording.
- Premium Eyepieces: Outfitted with WF10X/25 wide-field adjustable eyepieces. The 25mm large field of view provides a significantly wider viewing area compared to standard standard microscope lenses.
- Optical Coatings: The lenses are treated with a Fully Multi-Coated (FMC) anti-reflection coating to minimize glare, boost light transmission, and reduce eye strain.
- Ergonomics: Supports a customizable pupillary distance adjustment ranging from 55mm to 75mm.
- Build & Stability: Built with a durable, heavy-duty all-metal frame and paired with a large, stable aluminum alloy base to absorb vibrations during delicate BGA rework.
What is Included in the Box?
According to technical breakdowns and community video reviews on platforms like YouTube, the standard retail package typically includes:

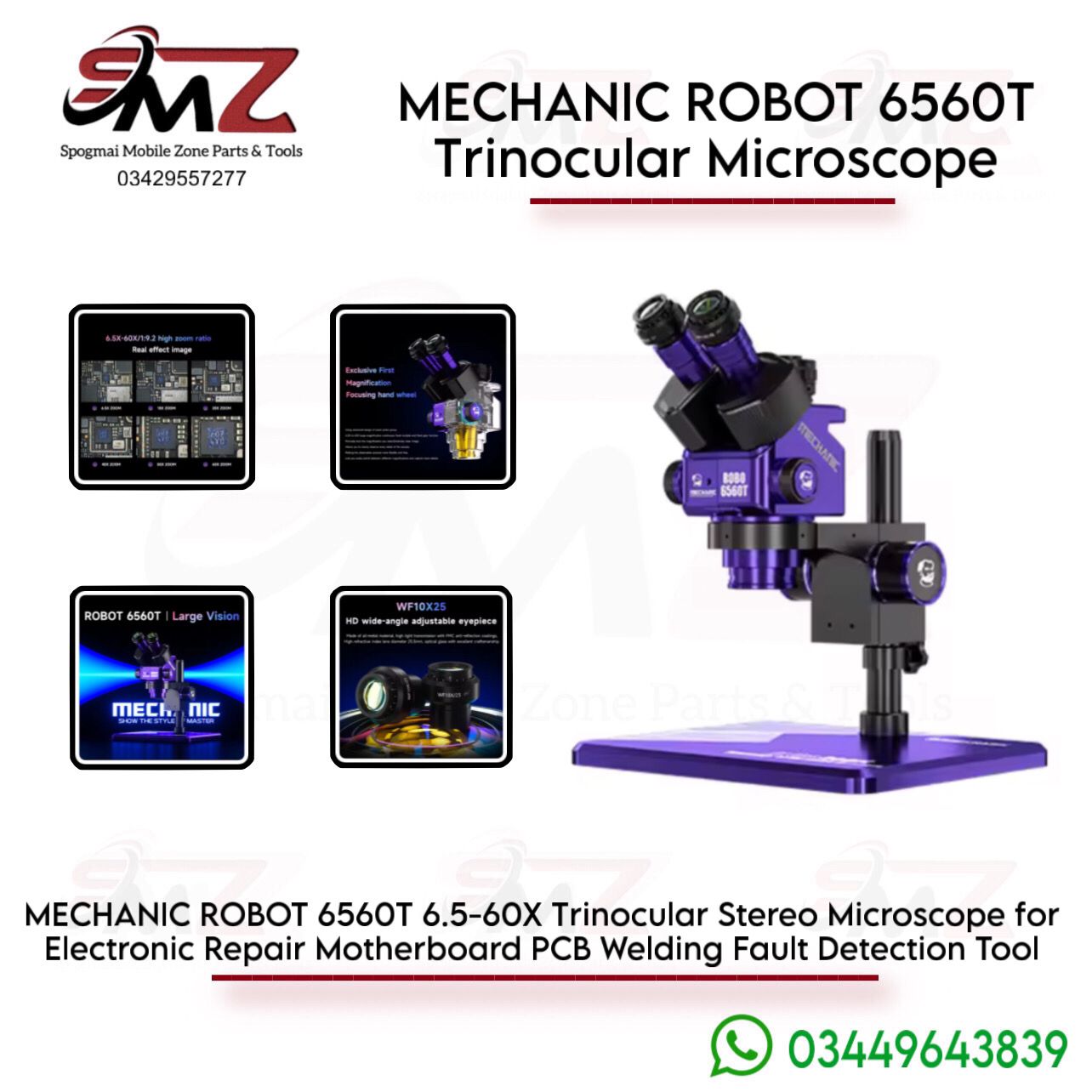

- Mechanic ROBOT 6560T Trinocular Head
- Heavy-metal mounting bar and focus arm gear assembly
- Two WF10X/25 Eyepieces with protective silicone eye cups
- 0.45X CTV Camera Adapter
- Adjustable LED ring light (often touch-controlled or dimmable)
- Anodized Aluminum Alloy Base
Primary Applications
- Cell Phone Repair: Tracing faults, inspecting tiny solder joints, and performing jumpers on micro-circuits.
- IC & BGA Reballing: Aligning and soldering delicate chip-level architecture under continuous zoom.
- Jewelry & Watchmaking: Setting small gemstones and repairing mechanical watch movements.
