Key Specifications & Features

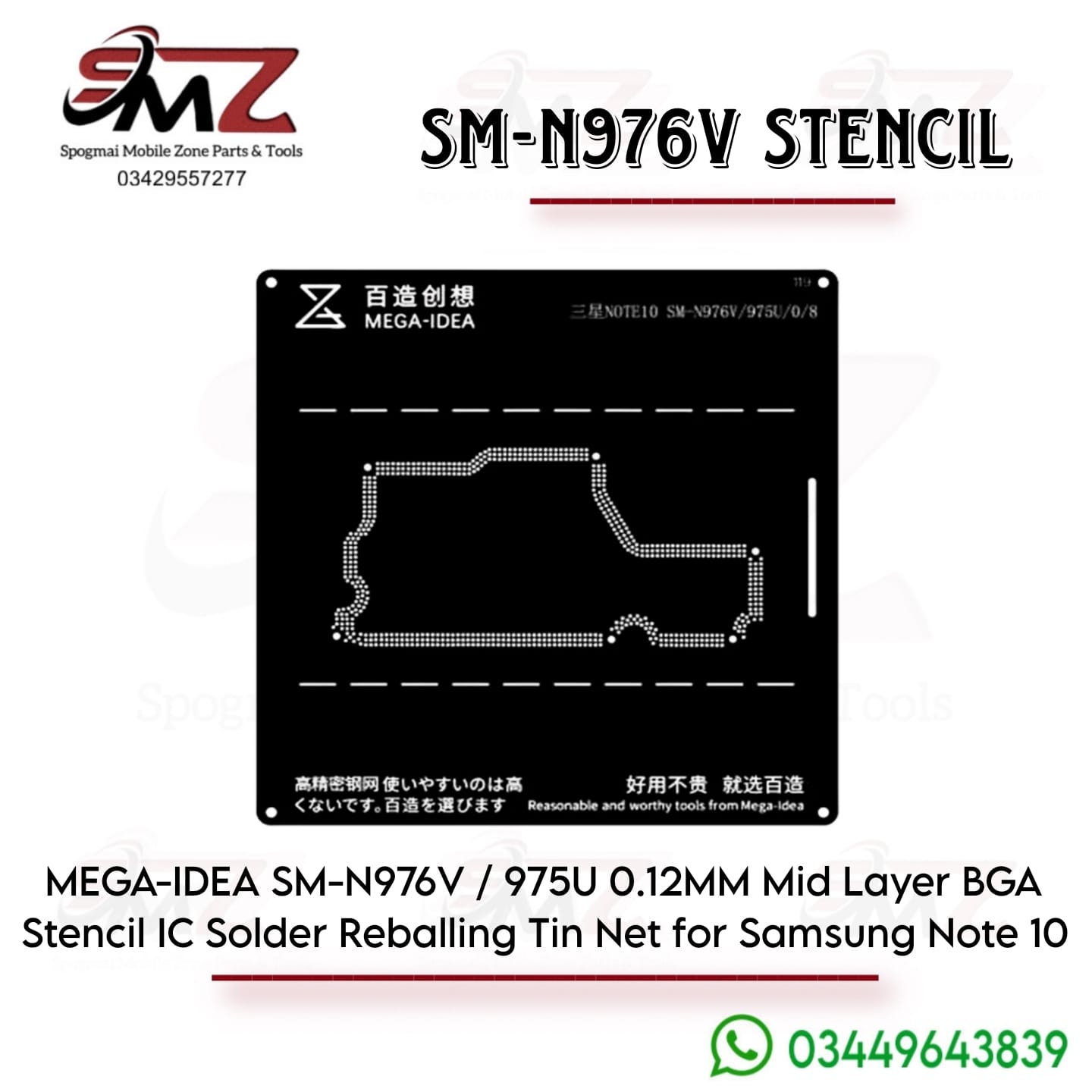

- Device Compatibility: Universally tailored for the Samsung Galaxy Note 10 series sandwich boards, specifically covering SM-N976V (Verizon 5G), SM-N975U, SM-N970, and regional variants.
- Material & Build: Crafted from high-grade, heat-resistant blackened steel. The signature black finish reduces eye strain under microscope lighting and prevents thermal warping during hot-air rework.
- Thickness: Features a precise 0.12mm profile, which provides the exact volume of solder paste required to form optimal uniform micro-solder balls without bridging.
- Square Hole CNC Technology: The apertures are cut with a precise square-stepped or tapered profile, helping the solder paste release cleanly from the mesh after scraping.
Why You Need This Specific Stencil
Modern high-end smartphones use stacked (sandwich) motherboards to save space. When a phone experiences a severe drop, severe overheating, or requires a CPU/baseband swap, the middle interposer layer connection breaks. Repairing it requires:
- Desoldering the top and bottom boards using a heating station.
- Cleaning the old solder from the middle frame arrays.
- Re-tinning the middle layout using this exact stencil template to align hundreds of outer-ring connection points simultaneously
