⚙️ Integrated Components On The Flex

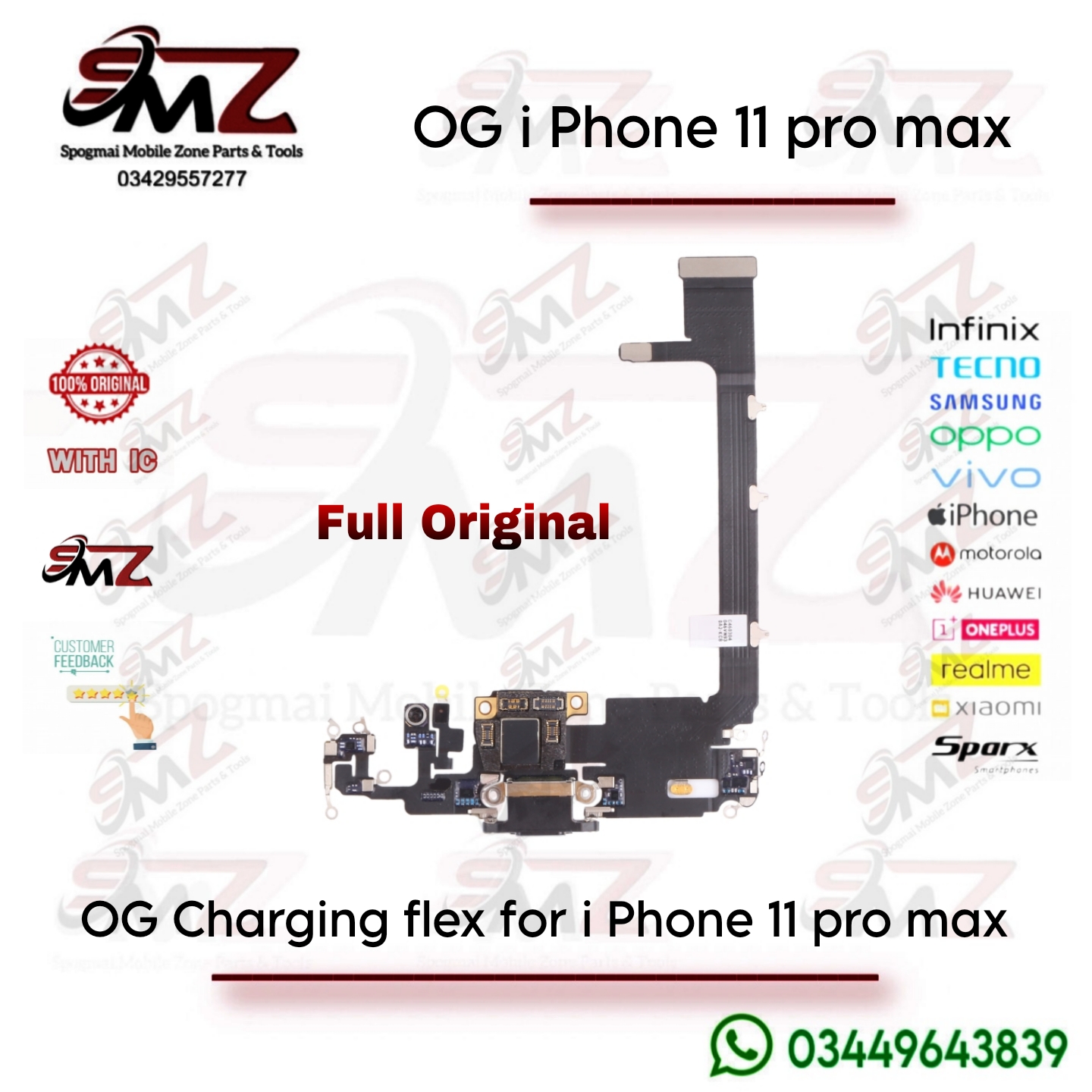

The flex cable is not just a single port; it acts as a central hub for the bottom array of the phone. It includes:
-
- Lightning Dock Connector: The physical port for your charging cable and data sync.
- Integrated Circuit (IC Board): Houses power management sub-chips (similar to the Tigris charging logic) that regulate fast charging protocol handshake and prevent motherboard boot-looping.
- Bottom Dual Microphones: Captures your voice for standard phone calls, voice memos, and bottom-facing audio recording.
- Antenna Contacts: Connects cellular and Wi-Fi signal arrays to the lower frame.
- Logic Board Connectors: Two primary plug-and-play FPC connectors that link directly back up to the main logic board.
- Taptic Engine & Loudspeaker Contact Pads: Power routing pathways for the vibration motor and the lower speaker assembly.
🔍 Quality Differences: “With IC” vs. “No IC”
When purchasing this replacement part on platforms like AliExpress or from specialty distributors, you will see multiple tiers. Understanding the difference is crucial for a successful repair:
| Feature | Original / Copy With IC (Recommended) | Cheap Copy No IC (Avoid) |
|---|---|---|
| Fast Charging | Full support (Power Delivery). | Very slow standard charging only. |
| System Stability | Stable OS boot; fully iOS compliant. | Causes 3-minute bootloops (restarts every few mins). |
| Microphone Quality | Crisp, clear dual mic transmission. | Muffled or completely dead mic audio. |
| Signal Reception | Strong cellular/Wi-Fi connection. | Drastic drop in network bars / weak signal. |
| OTG Data Sync | Flawless data transfer & computer sync. | Often handles power only; no computer sync. |
⚠️ When Does It Need Replacement?
You should replace this assembly if your phone exhibits any of the following symptoms:
-
- The phone does not charge at all or only charges when the cable is bent at specific angles.
- People cannot hear you on normal calls, but speakerphone works (the top mic works, but the bottom mic on this flex is dead).
- The iPhone is not recognized by a Mac or PC via a USB cable.
- Sudden drops or fluctuations in cellular signal strength without a clear cause.
🛠️ Key Repair & Installation Notes
- Color Matching: The exterior perimeter of the Lightning port opening is part of the flex assembly. Ensure you pick the version that matches your device’s exact color (Space Gray, Silver, Gold, or Midnight Green) so the exposed metal looks uniform from the outside.
- No Soldering Required: This is a plug-and-play repair at the connector level. However, it requires a complete bottom tear-down. You must remove the screen, disconnect the battery first to prevent shorts, and pull out both the Taptic Engine and the Loudspeaker to peel out the old adhered flex cable.
- Precision Screws: Keep track of your screws. The iPhone 11 Pro Max uses a mix of Pentalobe, Tri-wing (Y000), Standoff, and Phillips screws. Putting the wrong screw back into the wrong hole can cause irreparable trace damage to the logic board.
