Parts & Specifications

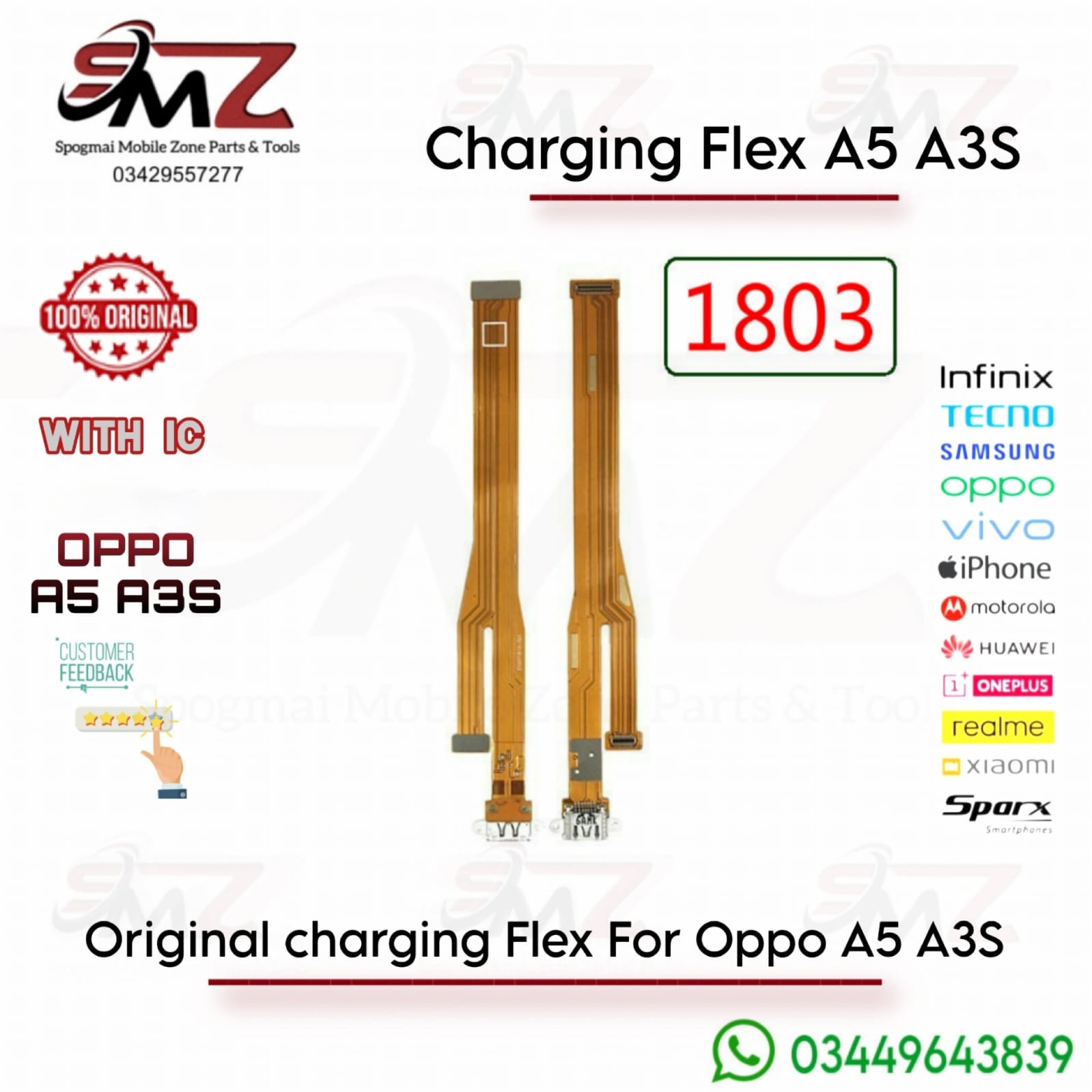

- Module Features: Contains the USB charging port, high-definition microphone, full IC support for stable charging, and antenna connectors.
- Compatibility Check: Ensure you buy the part for the OPPO A5 2018 (Models:
CPH1809,CPH1851,PBAM00,PBAT00). It is not compatible with the newer, Type-C-based OPPO A5 2020.
Diagnostic Checklist
Replace this specific flex component if you experience:
- The phone fails to take a charge or requires you to wiggle the cable to connect.
- The device connects to a computer but fails to sync or transfer data.
- People cannot hear you during phone calls (indicating a failed microphone on the same board).
Standard Replacement Guide
- Power Off: Shut down the mobile device completely.
- Remove Back Cover: Carefully pry open the rear plastic panel using a guitar pick or thin plastic opening tool.
- Remove Shields: Unscrew the bottom plastic speaker enclosure to reveal the lower sub-board.
- Disconnect Leads: Unplug the main motherboard ribbon flex, the small coaxial antenna wire, and any attached vibrator motor leads.
- Swap & Reassemble: Remove the damaged board, press the new flex board firmly into position, re-attach all connectors, and re-screw the device.
