Core Technical Specifications

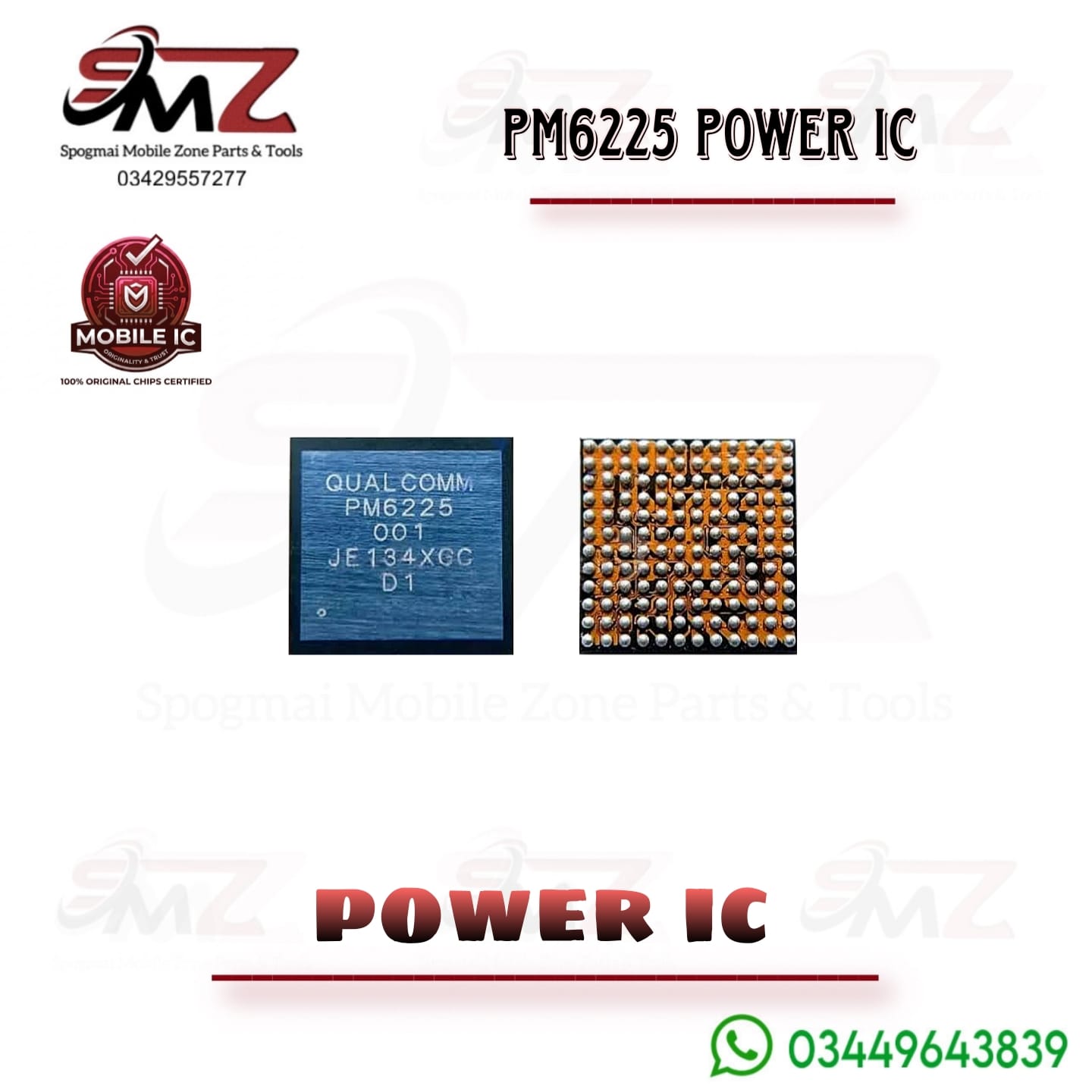

- Function: Power Management IC (PMIC) / Voltage Regulator.
- Input Supply Voltage: 5V.
- Power Dissipation: Approximately 0.5W.
- Power Conversion Efficiency: Exceeds 95% to minimize thermal output.
- Operating Temperature: 0°C to 100°C.
- Package Type: Surface Mount Device (SMD) / Ball Grid Array (BGA).
- Outputs: Multiple integrated buck/boost converters and LDO rails supplying typical logic voltages (e.g., 1.0V, 1.8V, 3.3V).
Key Functional Features
- Intelligent Power Distribution: Regulates stable voltage and balances electrical loads between the CPU, cameras, and display.
- Thermal Protection: Employs built-in automatic thermal shutdown circuits to protect phone hardware during heavy usage or fast-charging cycles.
- Energy Conservation: Built with low static power consumption to directly extend overall smartphone battery life.
Common Compatible Devices
This PMIC is a universal replacement part utilized heavily in mid-range smartphone motherboards:
- Xiaomi / Redmi: Redmi Note 11 (4G variants)
- OPPO: OPPO A36
- Vivo: Vivo Y32
- Huawei: Huawei Nova 9 SE, Mate 40 PRO
Common Fault Symptoms
When the PM6225 IC fails, it often causes severe power-related issues on the motherboard:
- The phone completely failing to power on (dead phone).
- Boot-looping or sudden, random device shutdowns.
- Battery charging failure, slow charging, or overheating near the power section.
- Note: Replacing this chip requires expert micro-soldering skills, a BGA reballing stencil, and a hot air rework station.
