Key Functions
The chip operates as a secondary power hub, handling five specific internal sub-circuits:
-
- Battery Charging Section: Manages safe voltage, current input, and fast charging processing.
- DC-to-DC Converter: Stabilizes power and steps voltage up or down for other internal boards.
- Display Graphics IC: Generates the voltages required to drive screen display images.
- Display Backlight IC: Powers the LEDs responsible for screen illumination.
- Vibrator Motor Circuit: Drives the commands for device haptic feedback and vibrations.
Common Device Compatibility
This IC is widely utilized across budget and mid-range devices from several major smartphone manufacturers:
-
- Xiaomi / Redmi: Used across standard Redmi variants (e.g., Redmi Note 9 series).
- Vivo: Commonly replaced on models like the Vivo Y73, Y11, Y93, and Y95.
- Oppo & Realme: Built into various configurations such as the Oppo A5.
- Samsung: Integrated into select mid-range options like the Galaxy A32.

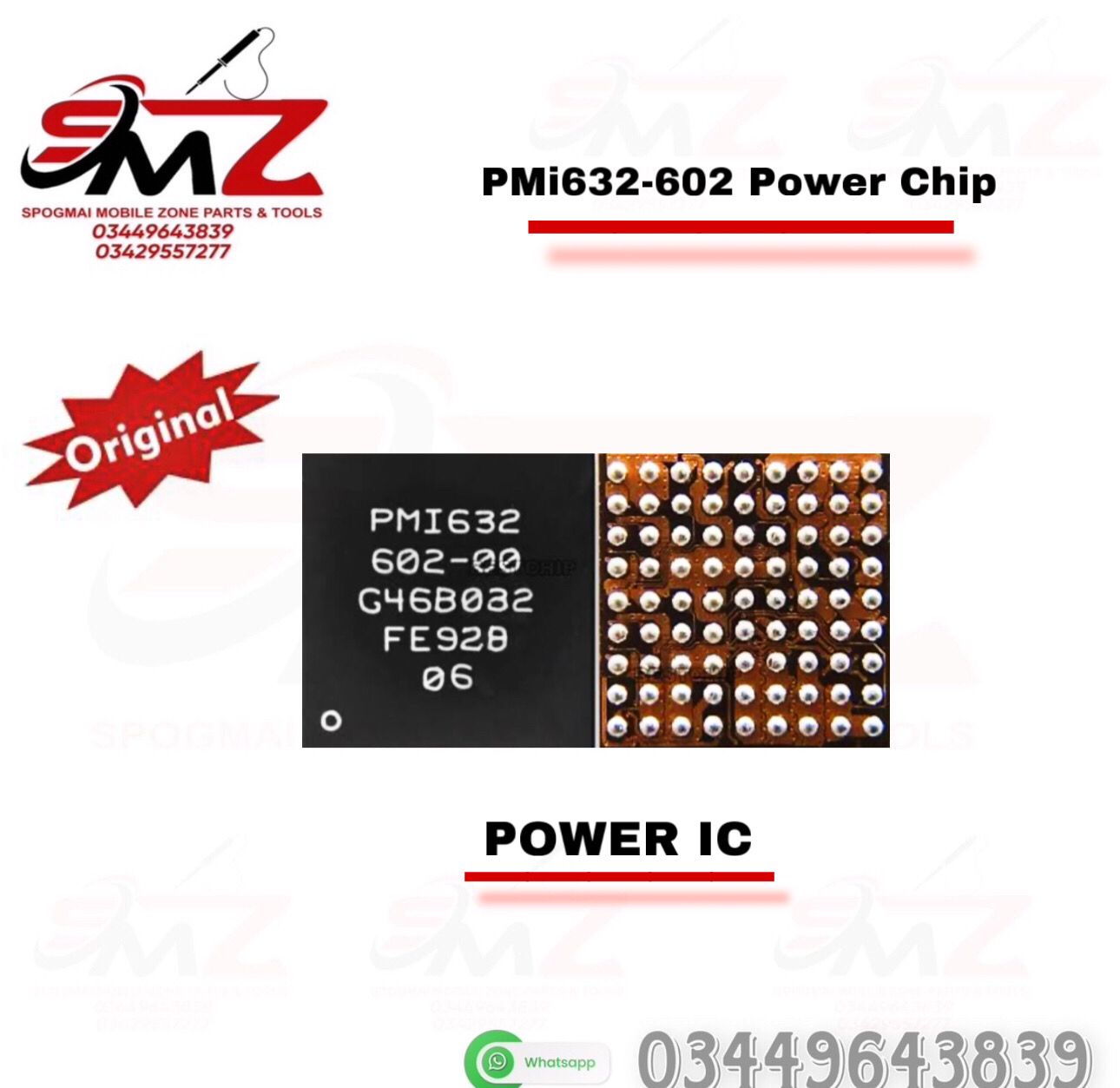

Symptoms of a Failing PMI632-602
When this chip burns out or breaks from fluctuating voltage, it typically causes these hardware issues:
- Total Power Failure: The smartphone goes completely “dead” and refuses to boot up
- Charging Faults: Fake charging indications, slow charging, or zero power intake when plugged in.
- Display Blankness: Sound and vibrations function, but the screen has no graphics or backlight.
