🛠️ Core Specifications

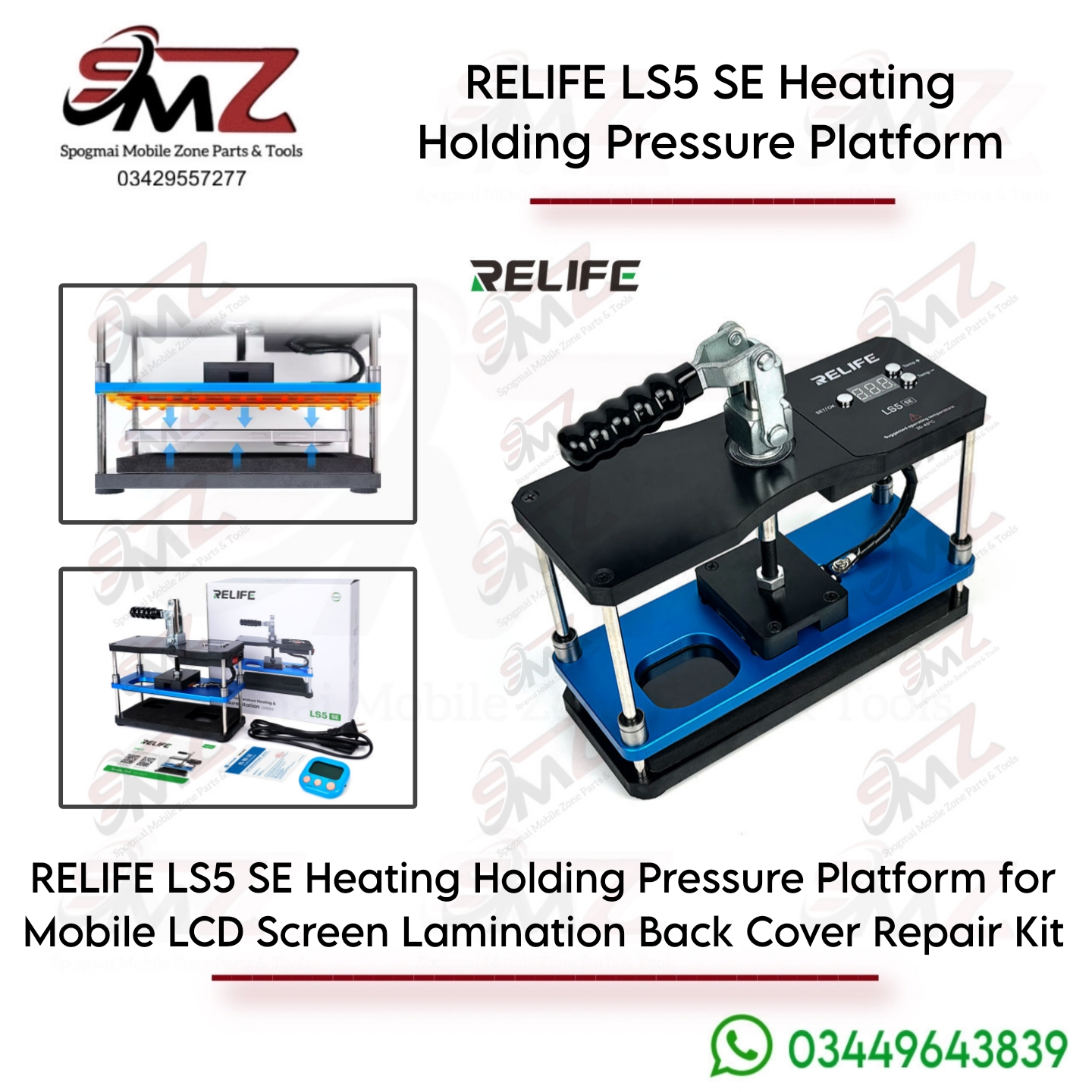

- Model: LS5 SE
- Net Weight: ~1300g (1.3 kg)
- Product Size: 220 x 80 x 215 mm
- Temperature Range: Adjustable up to a maximum of 80°C (Note: The recommended operating temperature for pressure holding and adhesive activation is between 35°C and 45°C)
- Input Voltage: AC 110V / 220V dual compatibility
- Pressure Mode: Bidirectional dynamic mechanical pressure
⭐ Standout Features
- Bidirectional Dynamic Pressure: Users can seamlessly toggle between front and back pressure modes. This makes it an all-in-one setup for both screen-to-frame bonding and back glass hot-pressing without needing separate clamps.
- Camera Avoidance Design: Features top and bottom camera cutouts paired with a thickened pressure pad. This distributes uniform mechanical force across modern iPhone and Android displays without putting any structural stress on protruding rear camera modules.
- Intelligent Temperature Control: Outfitted with an integrated digital display and precise “Temp+” and “Temp-” buttons to evenly heat the surface, activating adhesives securely without thermal degradation to the underlying display or components.
- Optimized Workflow: Designed with a manual pull-down locking lever and a push-pull plate system. Technicians typically clamp down a device for 1 to 3 minutes to guarantee a flat, bubble-free factory bond.
📦 Package Contents
When purchasing the retail kit from authorized distributors like SMZ, the box generally includes:
- 1 x LS5 SE Heating and Holding Pressure Station
- 1 x Power Cable / Adapter
- 1 x External Digital Timer
- 1 x User Guide
