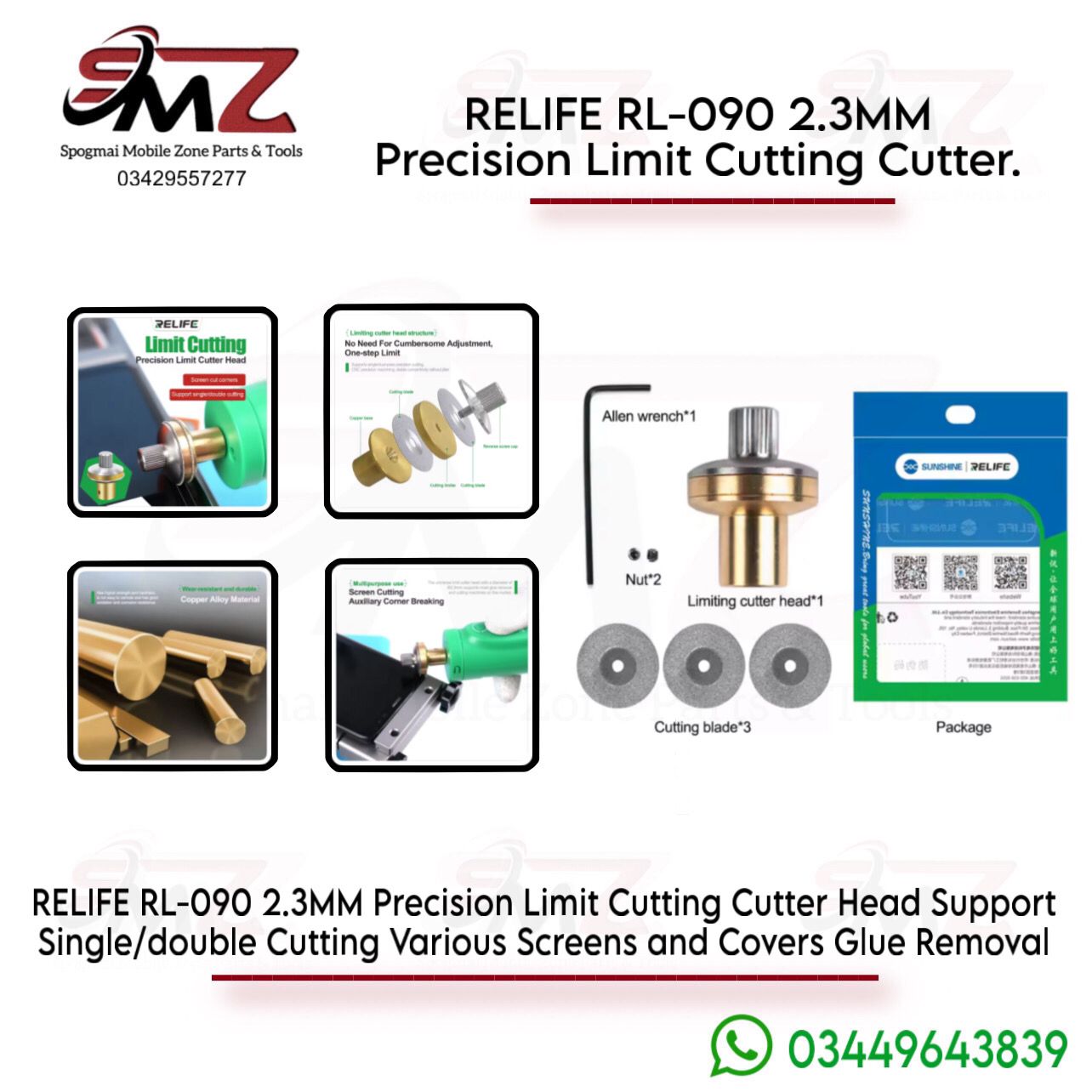

Technical Specifications
- Shaft/Rotor Diameter: Φ2.3 mm universal fit
- Net Weight: ~36 grams
- Gross Weight: ~40 grams
- Product Dimensions: 20.7 × 28.5 × 20.7 mm
- Cutting Blade Size: 11 × 22 × 0.25 mm
- Pre-set Cutting Depth Limit: 0.6 mm
- Material: Premium CNC-machined copper/brass alloy
Key Features
- Universal Compatibility: The standard 2.3 mm shaft fits seamlessly onto most electric grinding, polishing, and OCA glue removal machines on the market.
- One-Step Depth Limiting: Requires no manual adjustment. It provides an immediate, fixed depth-stop to prevent the blade from penetrating too deeply and scratching the inner display panel.
- Single & Dual-Way Cutting: Supports unidirectional or bidirectional cutting passes, giving flexibility when steering around tightly curved display corners.
- Reverse Thread Safety Design: The blade attaches using counter-rotational threads. As the motor spins and encounters resistance, the blade tightens itself automatically rather than coming loose.
- Zero Jitter Concentricity: Crafted via high-precision CNC manufacturing to deliver steady rotation, eliminating vibration and wobbling during delicate micro-operations.
Package Contents
- 1 x Limiting Blade Base
- 3 x Circular Cutting Blades
- 2 x Lock Nuts
- 1 x Inner Hexagonal Wrench
