Key Technical Specifications & Features
-
- Curing Speed: Achieves 3-second rapid curing when exposed directly to a UV light source (such as the RELIFE RL-014 Curing Lamp).
- Transparent Finish: The clear, transparent colloid formula provides excellent visual inspection capabilities, allowing technicians to easily see the underlying PCB tracks and micro-soldering work.
- Stability & Durability: Formulated to be highly resistant to high temperatures, meaning it will not soften or degrade during subsequent heat gun operations or device usage. It provides strong scratch resistance and will not easily peel off once fully cured.Â

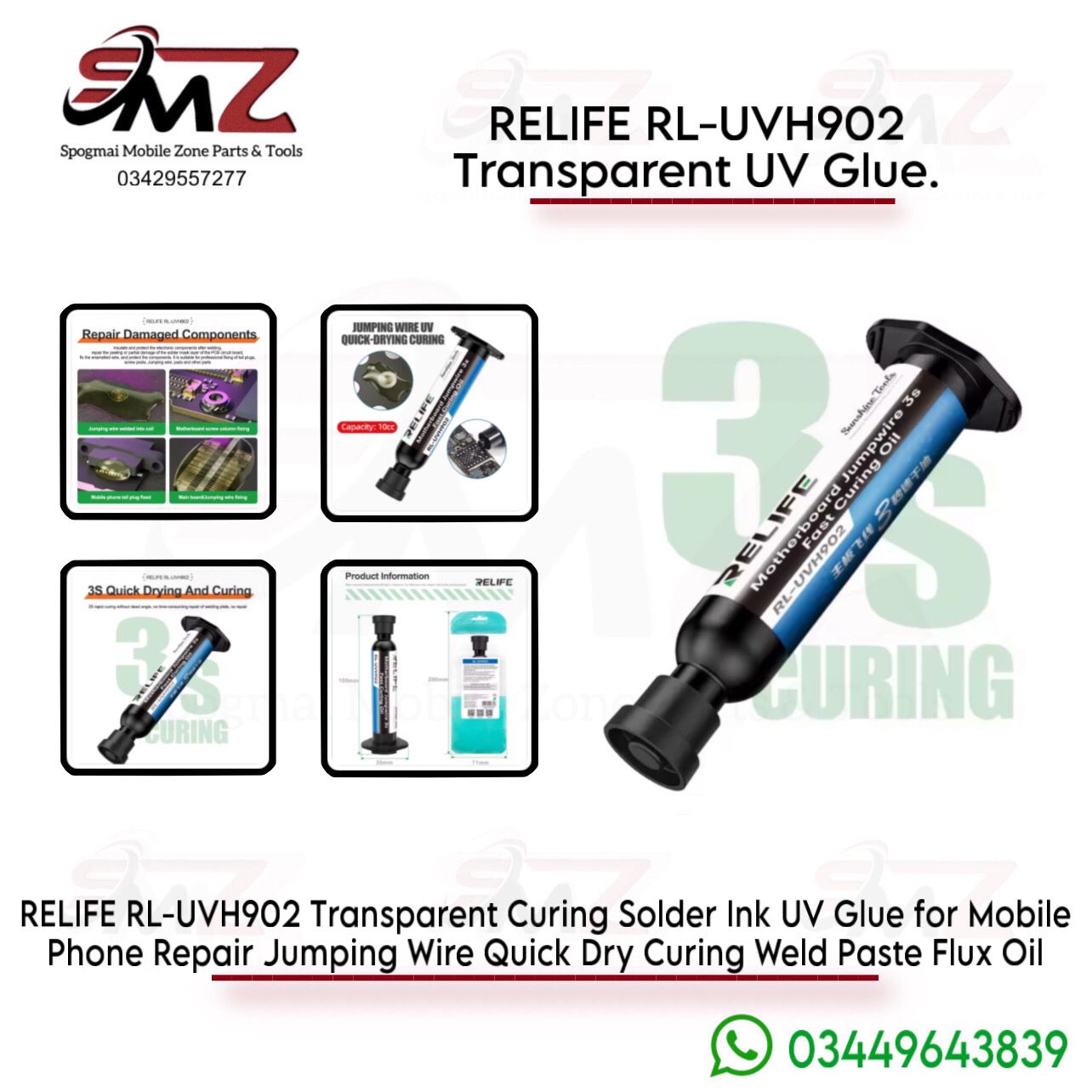

- Packaging: Typically distributed in a standard 10cc/10ml syringe barrel, making it compatible with mechanical hand pushers/boosters for highly accurate dispensing.Â
Primary Repair Applications
-
- Jumper Wire Anchoring: Securely locks down fine flying lines or jumping wires onto the motherboard, ensuring they do not snap or detach.
- PCB Solder Mask Repair: Fixes and replaces peeling, scratched, or damaged green/black solder mask layers on circuit boards to prevent accidental shorts.
- Component Reinforcement: Provides structural reinforcement for high-stress areas on a phone board, including tail plugs (charging ports), screw posts, chip pads, and CPU/BGA micro-components.
- Electrical Insulation: Acts as a complete dielectric barrier that insulates electronic components from environmental moisture and nearby conductive tracks.
Best Practices for Use
- Apply Thin Layers: For the optimal 3-second quick dry time, apply the adhesive in a thin, uniform layer. If a thick application is necessary, cure it in layers or leave the UV lamp over the area for a longer duration (10–30 seconds) to ensure deep polymerization.
- Use the Correct Light Wavelength: This adhesive relies on standard 365nm to 395nm UV curing lights. Ensure your lamp provides strong enough intensity, as a weak battery or wrong wavelength will leave the glue feeling tacky or uncured.
- Clean the Area First: Always use isopropyl alcohol (IPA) to clear away leftover flux, oils, or dust before dispensing the glue to guarantee a permanent, steadfast bond.
