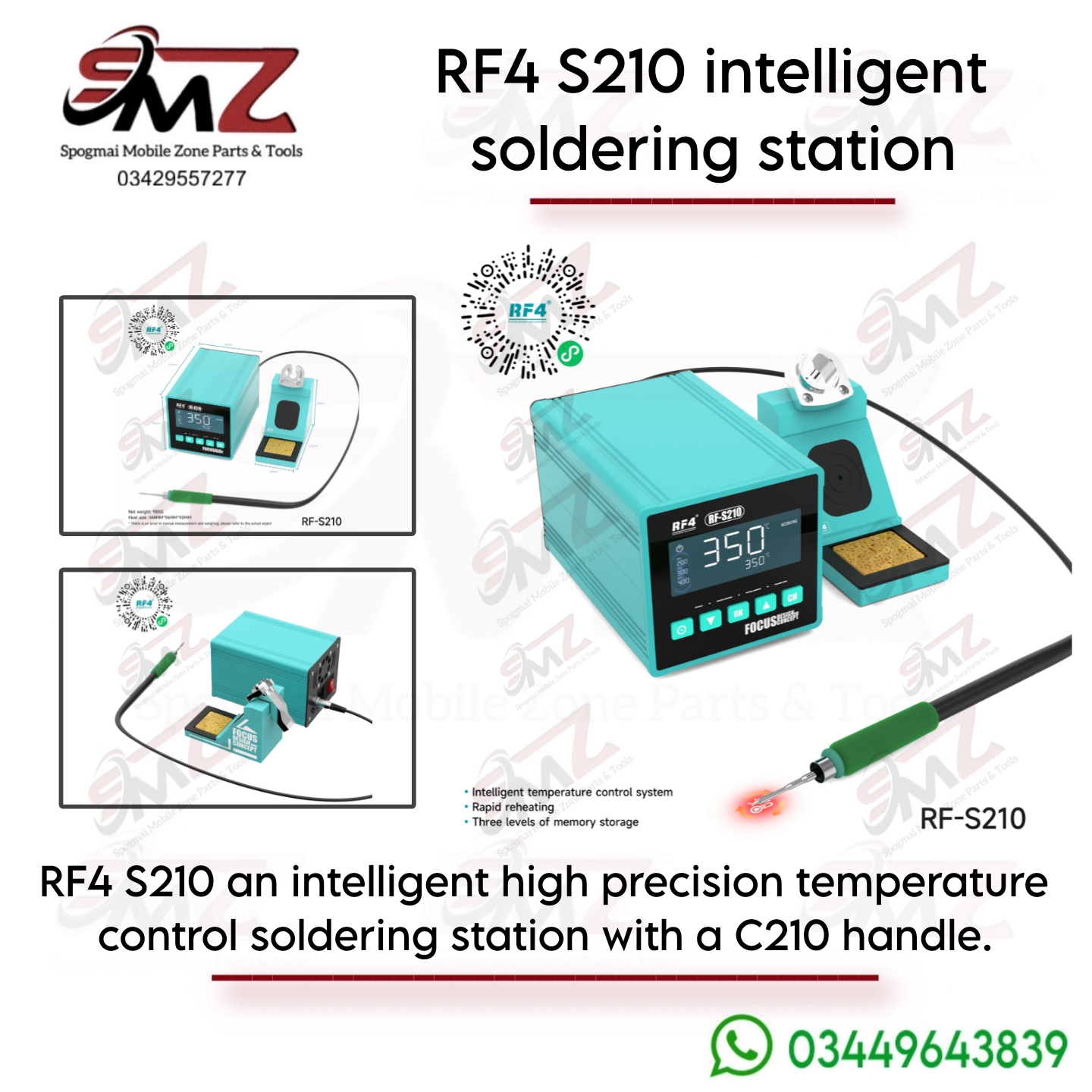

Key Technical Specifications
-
- Temperature Range: Adjustable from 100°C to 500°C (Supports Celsius and Fahrenheit switching).
- Handle Compatibility: Uses highly agile C210 handles and cartridges.
- Power Output: Rated at 72W for rapid heating and immediate temperature return.
- Control System: Features an independently developed “TCP” temperature control system to stabilize thermal output.
- Physical Weight & Size: Net weight of 985g; base dimensions are 144mm x 96mm x 90mm.
Standout Features
- Three-Level Memory Storage: Features 3 programmable quick-switch channels to instantly jump between common tasks (e.g., standard defaults at CH1: 320°C, CH2: 350°C, and CH3: 380°C).
- Metal Contact Sensing: Allows you to quickly switch or cycle through your memory temperature presets with a simple touch of the metal contacts on the handle base.
- Pedal Compensation Input: Includes a foot-pedal port that allows manual trigger temperature compensation when working with large, heat-sinking ground planes.
- Anti-Static (ESD Safe) Design: Protects sensitive micro-electronics and chips from electrostatic discharge during soldering.
