Core Technical Specifications

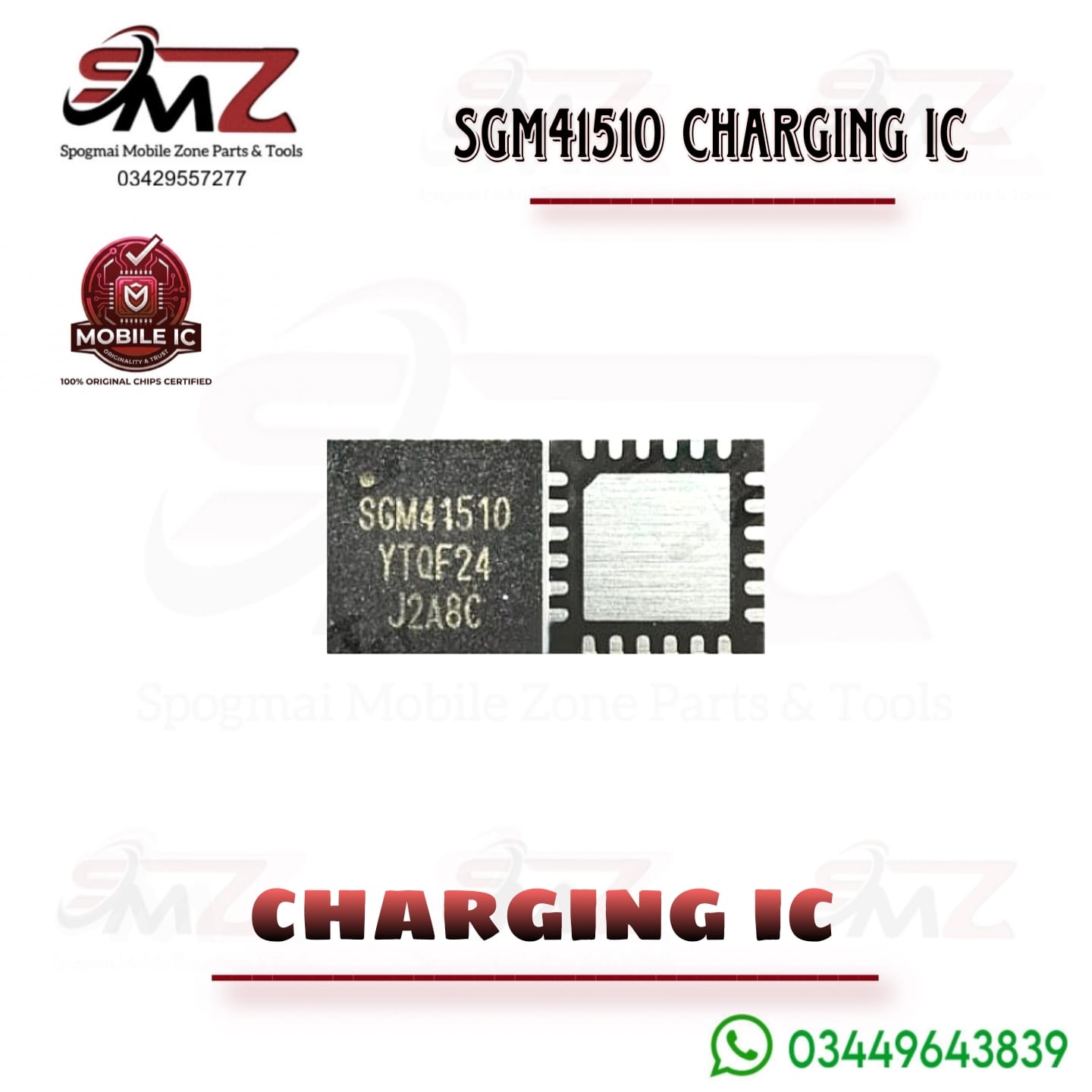

The operational and electrical boundaries of the integrated circuit according to the SGM41510 Datasheet include:
- Maximum Charge Current: Up to 5A fast charging capability.
- Input Voltage Range: Supports up to 14V operational input voltage.
- Switching Frequency: 1.5MHz synchronous buck topology.
- Charging Efficiency: 93.5% at 1A, 92.5% at 2A, and 90.8% at 3A.
- Battery Discharge Peak: High-efficiency discharge path supporting up to 9A current.
- Programmable Voltage Range: Flexible battery regulation limits spanning 3.84V to 4.608V.
- Package Type: Compact Green TQFN-4×4-24L (24 pins).
- Operating Temperature: -40°C to +85°C standard industrial range.
