📱 Main Compatible Devices
This integrated circuit is widely used as a replacement part for several popular mid-range smartphone models:
- Samsung Galaxy A12 (Variants: A125F, A127, etc.)
- Samsung Galaxy A22 (Including A22 5G / A226B)
- Samsung Galaxy A52s 5G (A528B)
- Samsung Galaxy A8S (G8870)
🛠️ Common Symptoms of a Faulty SM5714 IC
When this chip degrades or burns out, it disrupts key electrical rails inside the phone. Repair technicians often swap it when troubleshooting:
- Fake Charging: The device shows a charging icon but the battery percentage never climbs.
- Dead Phone: The smartphone refuses to turn on entirely due to a main power rail short circuit.
- No Charging: Complete failure to detect a connected USB cable or charger.
- Overheating: The logic board gets exceptionally hot near the battery connector while plugged into power.

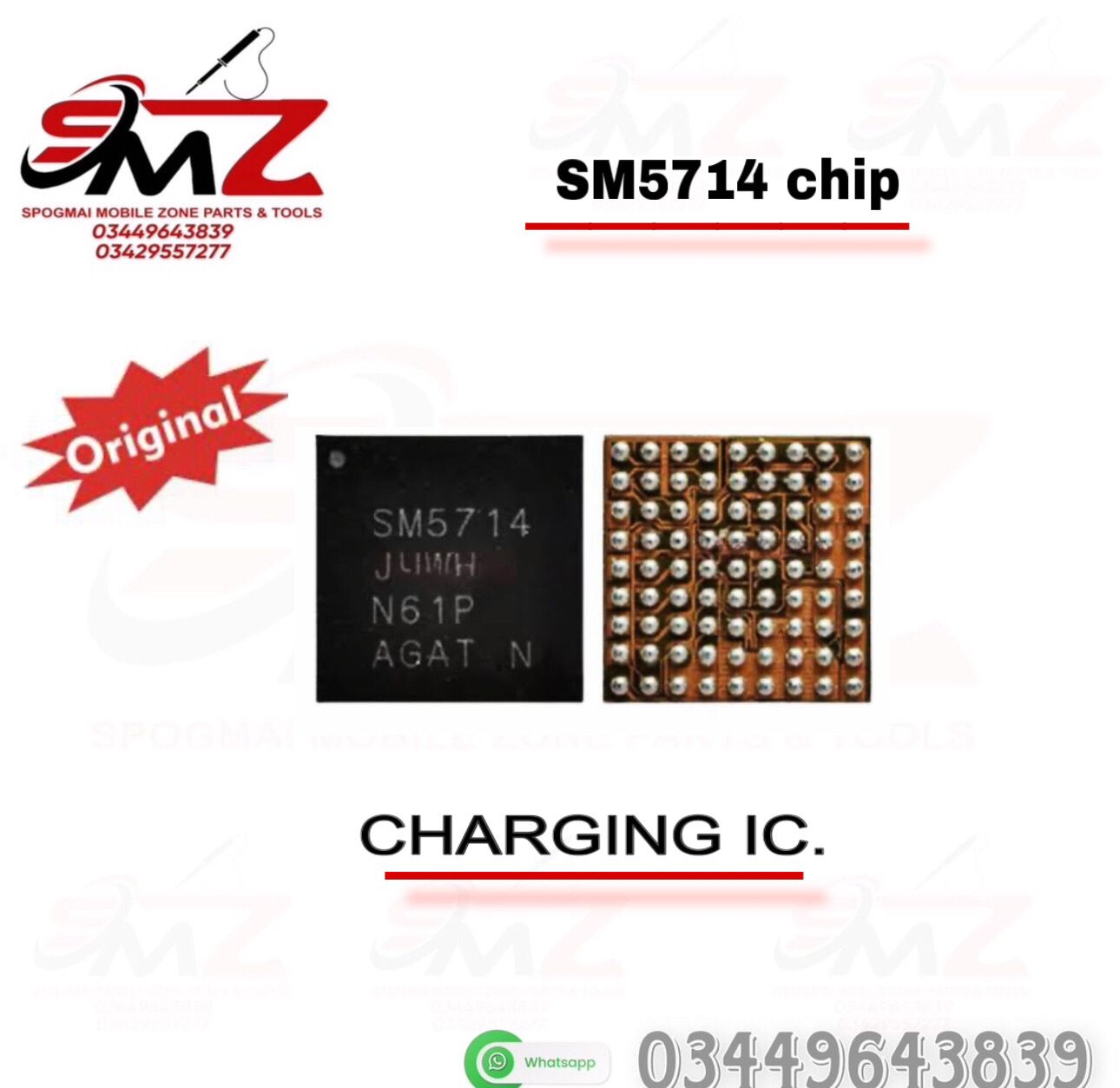

🔬 Technical Specifications
- Functionality: Charging management, Audio, and Display power supply.
- Input Voltage: Handles a stable 5V standard micro-USB or Type-C charging line.
- Mount Type: Surface-mount BGA (Ball Grid Array) requiring professional hot-air rework station tools to desolder and replace.
