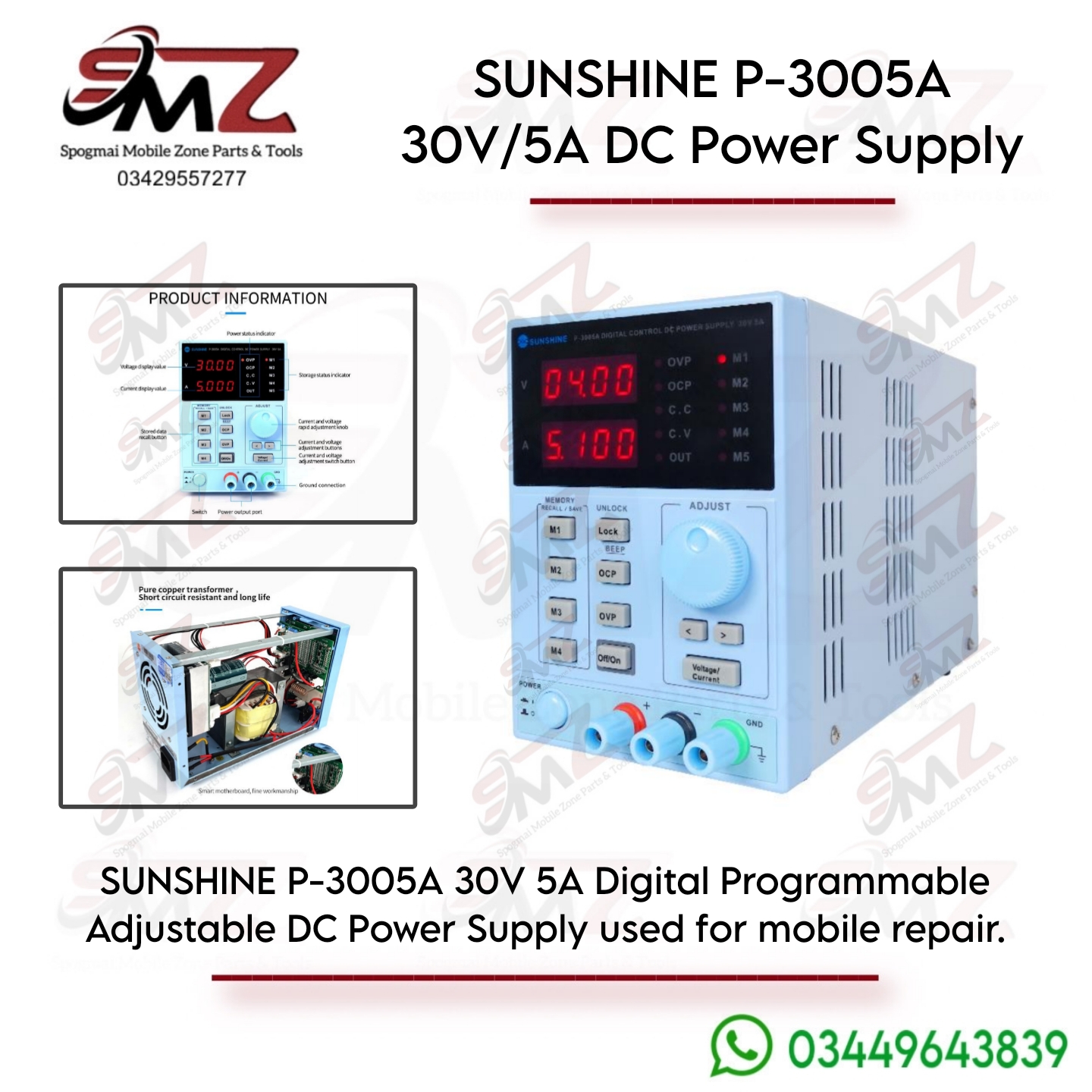

Key Specifications
- Output Capabilities: 0 to 30 Volts and 0 to 5 Amperes.
- Resolution Precision: Features a 4-digit digital LCD display with a fine readback resolution of 1mV for voltage and 1mA for current.
- Regulation Modes: Supports both Constant Voltage (CV) and Constant Current (CC) modes.
- Physical Footprint: Weighs approximately 4.3 kg with standard chassis dimensions of 110mm x 156mm x 260mm.
- Input Power: Configured primarily for 220V AC (50Hz) standard inputs, with some regional 110V options available.
Advanced Operating Features
- Memory Storage: Built-in storage allows users to program and save up to 5 groups of voltage/current parameters. It features power-off retention to remember settings when turned off.
- Dedicated Controls: A dedicated “Output” button lets you safely engage or disengage power delivery to the board without shutting down the entire machine.
- Safety Lock Function: The “LOCK” button disables the physical control panel interface to prevent accidental knob turns from spiking voltage and destroying sensitive components.
- Hardware Protection: Equipped with dedicated Over-Current Protection (OCP) and Over-Voltage Protection (OVP) circuits that instantly clip output if a short circuit occurs.
- Thermal Regulation: An intelligent, low-noise internal cooling fan activates automatically once internal temperatures cross 40°C.
