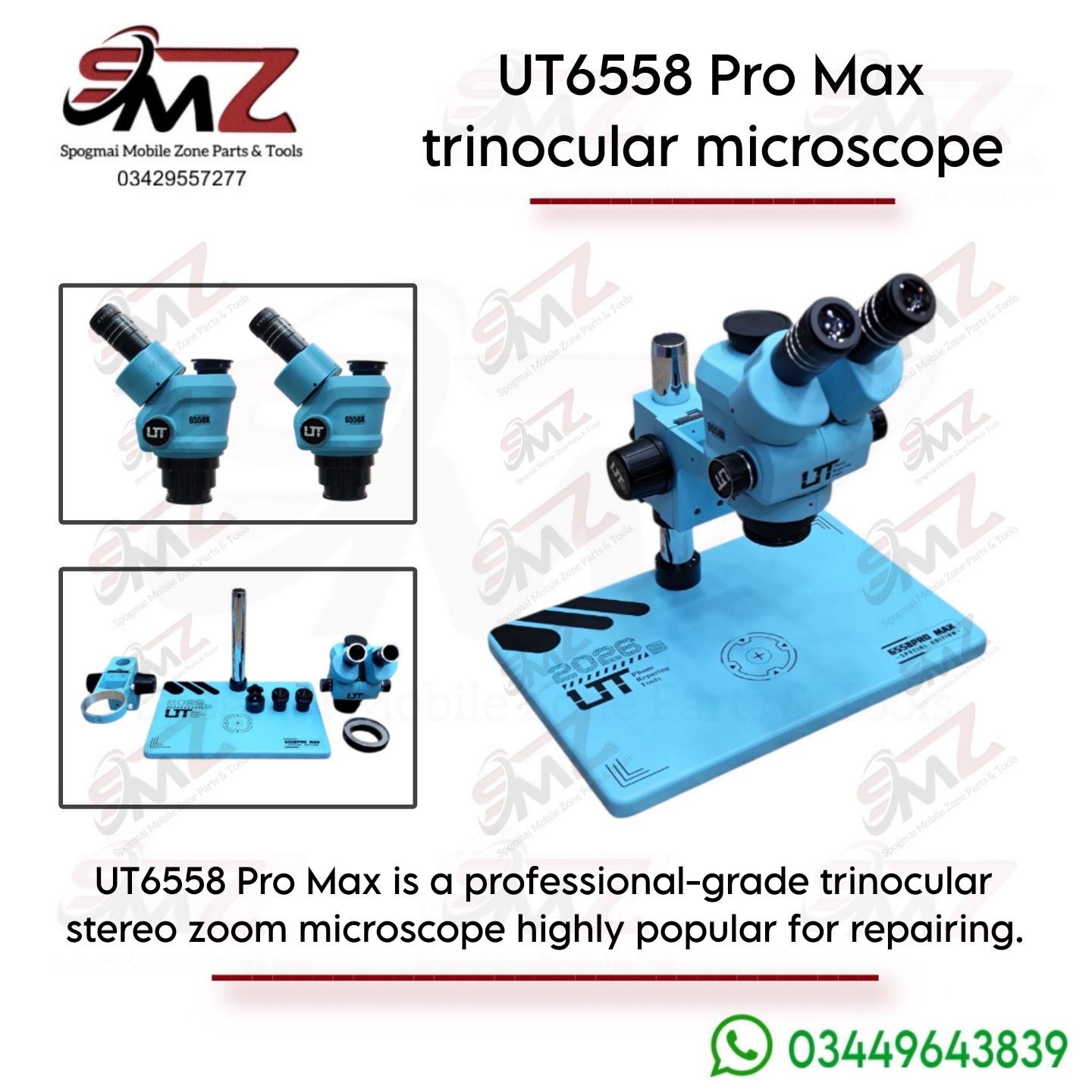

Core Technical Specifications
-
- Magnification Range: Offers a continuous, smooth optical zoom from 6.5X to 58X. This wide scope lets you effortlessly transition from full-board overviews to checking microscopic solder joints.
- Optical Head: Features a standard 45-degree inclined viewing angle to reduce neck strain during long working hours and a 360-degree swiveling head for structural flexibility.
- Eyepieces: Outfitted with WF10X/23 high eye-point, wide-field optical eyepieces. The large 23mm lenses provide an expanded viewing field, minimal peripheral distortion, and reduce eye fatigue.
- Trinocular Port: Built with a dedicated camera slot (typically utilizing a 0.35X or 0.5X CTV adapter) that supports synchronous focal zoom. This means you can view the live circuit board through the eyepieces while simultaneously outputting the video to an external 2K/4K display monitor.
Key Features & Design Elements
-
- Extra-Large Aluminum Base: The configuration relies on a massive, heavy-duty alloy workstation plate (commonly matching a 380x250x20mm layout). It provides superb physical stability, keeping the frame completely vibration-free while you operate.
- Advanced Mechanics: Designed with precise dual-metal gear control knobs for incremental zooming along with diopter adjustment rings on the eyepiece tubes to compensate for variations in individual eyesight.
- Shadowless LED Light & Protection: Bundled with a bright, touch-adjustable 56 LED ring light that evenly distributes illumination across the working area to eliminate dark shadows. The kit also features a structural dustproof lens cover to keep soldering smoke and debris away from the internal optics.
Contact Details (From Product Banner)
-
- Distributor: Spogmai Mobile Zone Parts & Tools
- Primary Contacts / WhatsApp Support:
03429557277or03449643839
